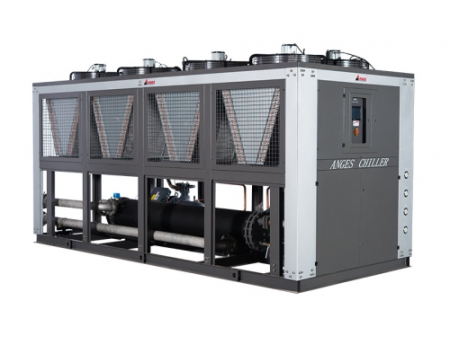

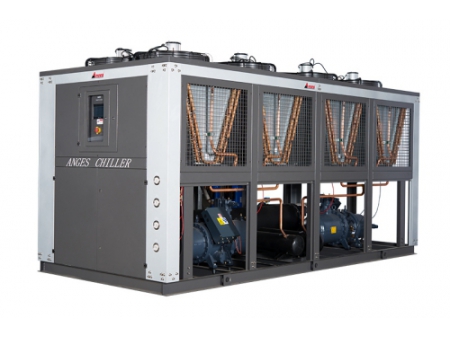

Air-cooled Screw Chiller
  • Cooling capacity: 120~765kW
  • Compressor type: Screw
  • Refrigerant: R22, R407C, R134A

Anges air-cooled screw chillers deliver cooling capacities from 120kW up to 765kW, the chilled water temperature ranges between 5℃and 30℃. Our extensive model range of industrial chillers can meet customer's specific application needs. If you are still struggling to identify the correct chiller, just email us or give us a call!

By adopting screw compressor, these air-cooled chillers offer 20%-30% higher efficiency than those chillers using common compressors. Besides, the screw compressors have a simple structure, fewer moving parts and wear parts, ensuring less noise and more reliable operation. Stepless variable-speed control can be achieved within a range of 10%-100%, improving energy efficiency.

Air-cooled Screw Chiller (Single Compressor)
Model: AGS-040ASH

Cooling capacity: 124.6kW
Total input power: 44kW
Max.runing current: 99.8A
Compressor type: Screw
Evaporator: Shell and tube

Model: AGS-050ASH

Cooling capacity: 164kW
Total input power: 56kW
Max.runing current: 127.6A
Compressor type: Screw
Evaporator: Shell and tube

Model: AGS-060ASH

Cooling capacity: 175.8kW
Total input power: 61kW
Max.runing current: 138.3A
Compressor type: Screw
Evaporator: Shell and tube

Model: AGS-075ASH

Cooling capacity: 235kW
Total input power: 81kW
Max.runing current: 185.1A
Compressor type: Screw
Evaporator: Shell and tube

Model: AGS-085ASH

Cooling capacity: 277.9kW
Total input power: 90kW
Max.runing current: 205.8A
Compressor type: Screw
Evaporator: Shell and tube

Model: AGS-100ASH

Cooling capacity: 326.9kW
Total input power: 107kW
Max.runing current: 243.9A
Compressor type: Screw
Evaporator: Shell and tube

Model: AGS-120ASH

Cooling capacity: 382.8kW
Total input power: 125kW
Max.runing current: 283.7A
Compressor type: Screw
Evaporator: Shell and tube

ModelCooling capacityTotal input powerMax.running currentCompressor typeEvaporator
AGS-040ASH
124.6 kW44 kW99.8 AScrewShell and tube
AGS-050ASH
164 kW56 kW127.6 AScrewShell and tube
AGS-060ASH
175.8 kW61 kW138.3 AScrewShell and tube
AGS-075ASH
235 kW81 kW185.1 AScrewShell and tube
AGS-085ASH
277.9 kW90 kW205.8 AScrewShell and tube
AGS-100ASH
326.9 kW107 kW243.9 AScrewShell and tube
AGS-120ASH
382.8 kW125 kW283.7 AScrewShell and tube

* Please download for details.

Air-cooled Screw Chiller (Dual Compressor)
Model: AGS-100ADH

Cooling capacity: 328kW
Total input power: 93kW
Max.runing current: 211.5A
Compressor type: Screw
Evaporator: Shell and tube

Model: AGS-120ADH

Cooling capacity: 351.6kW
Total input power: 112kW
Max.runing current: 255.3A
Compressor type: Screw
Evaporator: Shell and tube

Model: AGS-150ADH

Cooling capacity: 470kW
Total input power: 162kW
Max.runing current: 370.1A
Compressor type: Screw
Evaporator: Shell and tube

Model: AGS-170ADH

Cooling capacity: 555.8kW
Total input power: 181kW
Max.runing current: 411.6A
Compressor type: Screw
Evaporator: Shell and tube

Model: AGS-200ADH

Cooling capacity: 653.3kW
Total input power: 214kW
Max.runing current: 487.7A
Compressor type: Screw
Evaporator: Shell and tube

Model: AGS-240ADH

Cooling capacity: 765.6kW
Total input power: 249kW
Max.runing current: 567.5A
Compressor type: Screw
Evaporator: Shell and tube

ModelCooling capacityTotal input powerMax.running currentCompressor typeEvaporator
AGS-100ADH
328 kW93 kW211.5 AScrewShell and tube
AGS-120ADH
351.6 kW112 kW255.3 AScrewShell and tube
AGS-150ADH
470 kW162 kW370.1 AScrewShell and tube
AGS-170ADH
555.8 kW181 kW411.6 AScrewShell and tube
AGS-200ADH
653.3 kW214 kW487.7 AScrewShell and tube
AGS-240ADH
765.6 kW249 kW567.5 AScrewShell and tube

* Please download for details.

Features
  • Siemens PLC control system, the integrated controller automatically operates and alerts when any faults occur;
  • Adopting multi-stage adjustment, it can realize four stages (25%-50%-75%-100%) and three stages (33%-66%-100%) of capacity control; Or non-stage capacity control;
  • Constructed with high-quality components from world's leading brands like Bitzer compressor, Hanbell compressor, Siemens PLC control to guarantee high-precision control;
  • Refrigerant R22, R407C, R134A are optional;

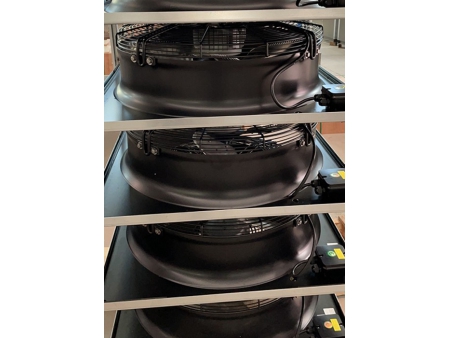

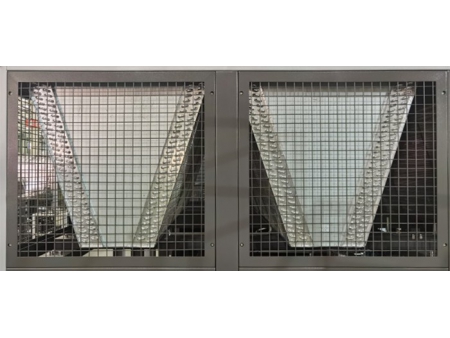

  • Copper tube and aluminum fin condenser with external rotor type fan, resulting in high efficiency and low sound levels;
Custom Options
  • Stainless steel plate evaporator
  • Common water pump or 4-8bar high pressure pump
  • Water tank
  • Low noise option
Applications

Central Air Conditioning System
Our screw chillers are widely used in central air conditioning systems of shopping malls, hospitals, factories, office buildings, hotels and more occasions where comfortable ambient temperature is critical.

Printing
In the printing industry, water chillers are critical due to its capability to remove the heat generated during printing operations. For example, toner printing uses heat to fuse toner to paper, and UV ink printing needs to cure the ink by means of UV light which generates a considerable amount of heat. These industrial chillers can not only remove the heat generated by the friction of the printing rollers, but also help cooling the paper when it comes out of the drying oven. Printing chillers will protect both machines and products from overheating.
