Integrated Water-cooled Screw Chiller
  • Cooling capacity: 143~805kW
  • Compressor type: Screw
  • Refrigerant: R22, R407C, R410A, R134A

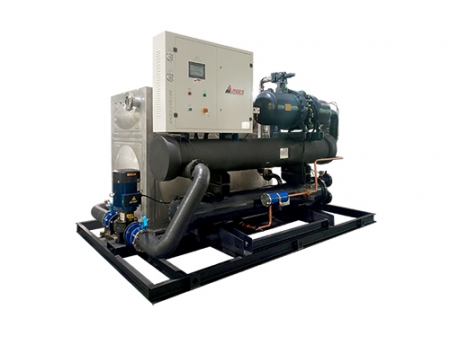

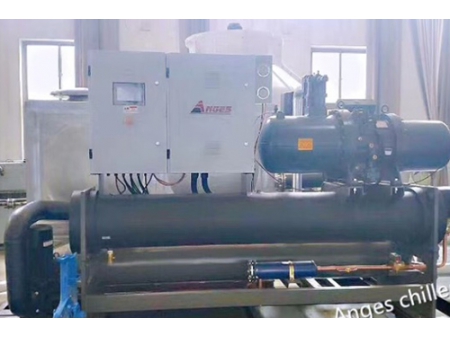

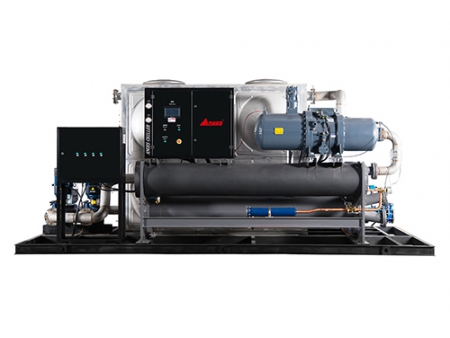

This integrated water-cooled screw chiller is an integrated industrial cooling unit containing chiller, water pump, water tank and control panel. The integrated water-cooled chiller is easy to install and easy to operate, greatly lowering installation cost.

Our integrated water-cooled screw chillers are available in over 10 models, giving customers a wide choice of cooling capacities from 143kW up to 805kW. Please tell us your requirements, our professional engineers are delighted to recommend appropriate industrial chiller to meet your specific application needs.

Model: AGS-040WSHI

Cooling capacity: 143kW
Total input power: 41kW
Max. running current: 90A
Compressor type: Screw
Evaporator:  Shell and tube
Tank volume: 1500 L

Model: AGS-050WSHI

Cooling capacity: 187.7kW
Total input power: 49kW
Max. running current: 110.9A
Compressor type: Screw
Evaporator:  Shell and tube
Tank volume: 1500 L

Model: AGS-060WSHI

Cooling capacity: 201.6kW
Total input power: 56kW
Max. running current: 127.4A
Compressor type: Screw
Evaporator:  Shell and tube
Tank volume: 2000 L

Model: AGS-075WSHI

Cooling capacity: 269.7kW
Total input power: 71kW
Max. running current: 162.0A
Compressor type: Screw
Evaporator:  Shell and tube
Tank volume: 3000 L

Model: AGS-085WSHI

Cooling capacity: 317.8kW
Total input power: 79kW
Max. running current: 179.4A
Compressor type: Screw
Evaporator:  Shell and tube
Tank volume: 3000 L

Model: AGS-100WSHI

Cooling capacity: 373.9kW
Total input power: 89kW
Max. running current: 202.6A
Compressor type: Screw
Evaporator:  Shell and tube
Tank volume: 3000 L

Model: AGS-120WSHI

Cooling capacity: 437.9kW
Total input power: 114kW
Max. running current: 260.5A
Compressor type: Screw
Evaporator:  Shell and tube
Tank volume: 4000 L

Model: AGS-140WSHI

Cooling capacity: 531.8kW
Total input power: 143kW
Max. running current: 325.5A
Compressor type: Screw
Evaporator:  Shell and tube
Tank volume: 5000 L

Model: AGS-160WSHI

Cooling capacity: 614.7kW
Total input power: 159KW
Max. running current: 361.9A
Compressor type: Screw
Evaporator:  Shell and tube
Tank volume: 5000 L

ModelCooling capacityTotal input powerMax.running currentCompressor typeEvaporatorTank volume
AGS-040WSHI
143kW41kW90AScrewShell and tube1500 L
AGS-050WSHI
187.7kW49kW110.9AScrewShell and tube1500 L
AGS-060WSHI
201.6kW56kW127.4AScrewShell and tube2000 L
AGS-075WSHI
269.7kW71kW162.0AScrewShell and tube3000 L
AGS-085WSHI
317.8kW79kW179.4AScrewShell and tube3000 L
AGS-100WSHI
373.9kW89kW202.6AScrewShell and tube3000 L
AGS-120WSHI
437.9kW114kW260.5AScrewShell and tube4000 L
AGS-140WSHI
531.8kW143kW325.5AScrewShell and tube5000 L
AGS-160WSHI
614.7kW121.8kW361.9AScrewShell and tube5000 L

* Please download for details.

Features
  • Adopting multi-stage adjustment, it can realize four stages (25%-50%-75%-100%) and three stages (33%-66%-100%) of capacity control; Or non-stage capacity control;
  • Constructed with high-quality components from world's leading brands like Bitzer compressor, Hanbell compressor, Siemens PLC control to guarantee high-precision control;
  • Refrigerant R22, R407C, R410A, R134A are optional;
  • Shell & tube condenser is adopted, simple structure and high stability of heat transfer;
  • Screw compressor has a simple structure, containing fewer moving parts and wear parts (only 1/10 the moving parts of piston compressor), low failure rate, long service life and low maintenance cost;
  • Stepless variable-speed control can be achieved within a range of 10%-100%, improving energy efficiency;

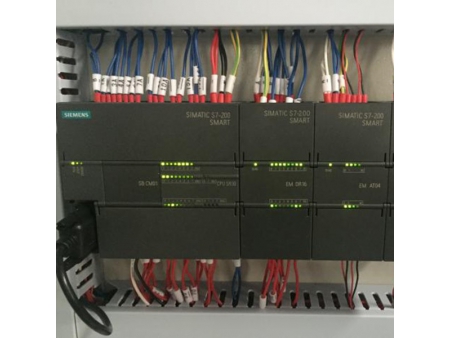

  • Siemens PLC control system, the integrated controller automatically operates and alerts when any faults occur;
Custom Options
  • Stainless steel plate evaporator
  • Common water pump or 4-8bar high pressure pump
  • Water tank
  • Low noise option
Applications

Beverage Filling
A popular application of industrial chiller is in the beverage industry, where chillers are used to remove the heat gained from the process during injection blow molding and mixing.

Central Air Conditioning System

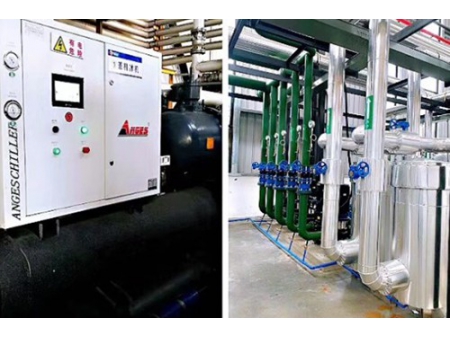

Our screw chillers are widely used in central air conditioning systems of shopping malls, hospitals, factories, office buildings, hotels and more occasions where comfortable ambient temperature is critical.
