YX65-300-400 Standing Seam Roofing Machine for One Time Tapered Forming
(This is a specially designed roofing machine for one time tapered forming. Ordinary roofing machines feature two times tapered forming.)
YX65-300-400 standing seam roofing machine is used for profiling tapered profile one times forming together slitting. Both straight and tapered profiles are available with this forming machine. Compact structure enables this machine to be loaded in a 40GP container for easy transport. The machine could be customized depending to customer’s needs.
- Straight and tapered profile are available in one machine
- The tapered profile is one-time formed.
- Smart body, available to fix in 40GP container, easy transport to the site
- Easy operation, low maintain cost
Model | YX65-300-400 |
Dimension | 7000*2000*1050mm |
Main Driving Motor Power | 7.5kW*2 |
Hydraulic Power for pre-cutting | 3kW |
Servo motor (Schneider; use for changing types) | 2kW |
Motor (use for controlling angle) | 1.1kW*2 |
Motor(use for slitting) | 1.1kW |
Motor(use for feeding device) | 4kW |
Forming Steps | 18steps |
Forming Speed | 8-15m/min |
Voltage | 380V/50HZ/3PH |
Effective Width for Straight Profile | The narrowest: 200mm; the widest: 700mm |
Effective Width Tapered Profile | The narrowest for the tapered side: 220mm; the widest for the other side: 700mm (Range of slope: 0~2.5 degrees.) |
Height of Roofing | 65mm |
Aluminum Thickness | 0.8-1.2mm |
Steel Thickness | 0.6-0.8mm |
Control System | PLC Control |
-
Flat Sheet Cutting Device
Cut the sheet before roll forming to required length.
Hydraulic power to cut, pump motor: 3kW
Feeding device with power, motor: 4kW
-
Roller is made of high quality 45# steel with CNC lathes and heat treatment. Hard chrome plating is also optional for long service life.
-
Tapered forming: One-time tapered forming
-
Auto Seamer
-

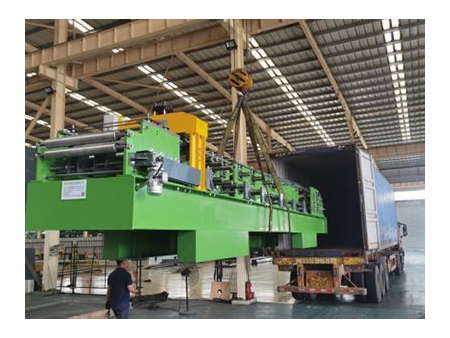

Available to be loaded in a 40GP container.
- Main Forming Machine for make Straight and Tapered Roof
- 5 Tons Manual Uncoiler/or 5 Tons Hydraulic Uncoiler
- 40GP New Container
- Auto Seamer
- Hand Seamer
- PLC Computer Controlling System With Touch Screen ( Brand: Schneider )
- Making Tapered Standing Seam Roofing-one times forming
- Run Out Table
- Operation Manual
