YX65-300-400-500 Standing Seam Roofing Machine
YX65-300-400-500 standing seam roofing machine is used for producing straight and tapered profiles with a width of 300mm, 400mm and 500mm. This metal roofing machine can roll form aluminum material with thickness of 0.7-1.0mm and steel material with thickness of 0.5-0.8mm. Adopting PLC control system realizes automatic production in an easy manner. The compact structure enables it to be loaded in a 20GP container, allowing for easy transport to the construction site.
Model | YX65-400-500 |
Dimension | 5800*1600*1500mm |
Motor Power | 7.5kW*2 |
Hydraulic Power | 2.2kW |
Forming Steps | 13Steps |
Forming Speed | 8-15m/min |
Voltage | 380V/50HZ/3PH |
Effective Width | 300mm,400mm,500mm |
Material Width | 475mm,575mm,675mm |
Height of Roofing | 65mm |
Aluminum Thickness | 0.7-1.0mm |
Steel Thickness | 0.5-0.8mm |
Control System | PLC Control |
-
Hydraulic post cutter is made by Cr12Mov mold steel, with HRC60-62 heat treatment for high quality and long service life.
-
Roller is made of high quality 45# steel with CNC lathes and heat treatment. Hard chrome plating is also optional for long service life.
-
Tapered Forming
Both size use for the tapered profile forming, two times forming for the tapered profile.
-

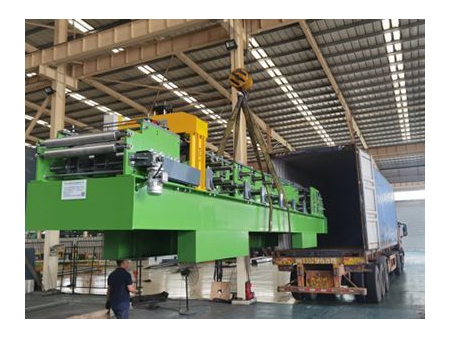

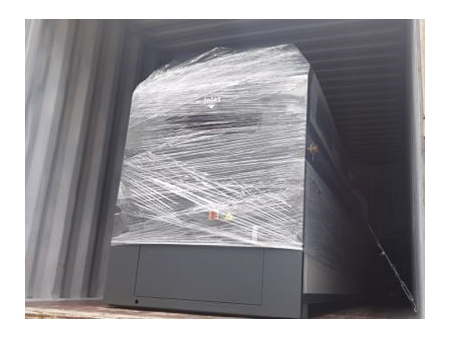

Available to be loaded in a 20GP container.
-
Auto Seamer
- Main Forming Machine for make Straight and Tapered Roof
- 5 Tons Manual Uncoiler/or 5 Tons Hydraulic Uncoiler
- 20GP New Container
- Auto Seamer
- Hand Seamer
- PLC Computer Controlling System With Touch Screen ( Brand: Schneider )
- Making Tapered Standing Seam Roofing
- Run Out Table
- Operation Manual
