Request a Quote

YX65-300-400-500 standing seam roofing machine is used for the production of tapered profile one times forming together slitting. Both straight and tapered profiles are available with this forming machine. Compact structure enables this machine to be loaded in a 40GP container for easy transport. The machine could be customized depending to customer’s needs.

Samples
Profiles
Features
  • Straight and tapered profiles are optional in one machine.
  • The tapered profile features one-time forming.
  • Smart body, available to fix in 40GP container, easy transport to the site
  • Easy operation, low maintain cost
Specifications
Model YX65-300-400-500
Dimension 7000*2000*1050mm
Main Driving Motor Power 7.5kW*2
Hydraulic Power for pre-cutting 3kW
Servo motor (Schneider; use for changing types) 2kW
Motor (use for controlling angle) 1.1kW*2
Motor(use for slitting) 1.1kW
Motor(use for feeding device) 4kW
Forming Steps 18 steps
Forming Speed 8-15m/min
Voltage 380V/50HZ/3PH
Effective Width for Straight Profile The narrowest: 200mm; the widest: 700mm
Effective Width Tapered Profile The narrowest for the tapered side: 220mm;
the widest for the other side: 700mm
(Range of slope: 0~2.5 degrees.)
Height of Roofing 65mm
Aluminum Thickness 0.8-1.2mm
Steel Thickness 0.6-0.8mm
Control System PLC Control
Details
  • Flat Sheet Cutting Device
    Cut the sheet before roll forming to required length.
    Hydraulic power to cut, pump motor: 3kW
    Feeding device with power, motor: 4kW

  • Roller is made of high quality 45# steel with CNC lathes and heat treatment. Hard chrome plating is also optional for long service life.

  • Tapered forming: One-time tapered forming

  • Auto Seamer

  • Available to be loaded in a 40GP container.

Main Accessories
  • Main Forming Machine for make Straight and Tapered Roof
  • 5 Tons Manual Uncoiler/or 5 Tons Hydraulic Uncoiler
  • 40GP New Container
  • Auto Seamer
  • Hand Seamer
  • PLC Computer Controlling System With Touch Screen ( Brand: Schneider )
  • Making Tapered Standing Seam Roofing-one times forming
  • Run Out Table
  • Operation Manual

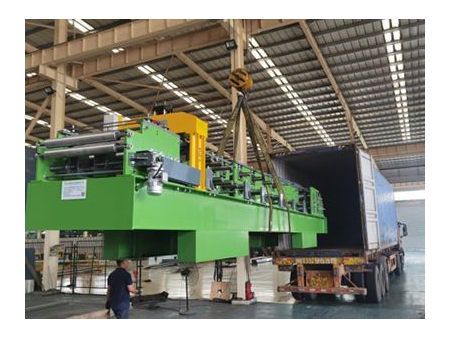

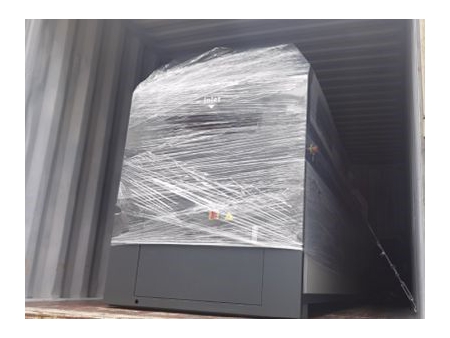

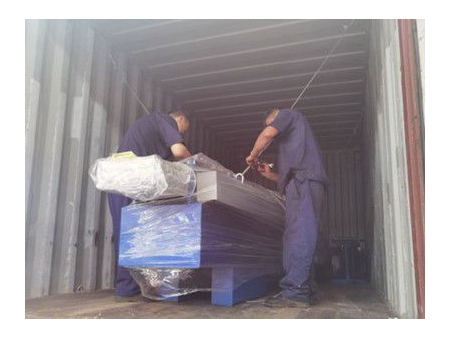

Transportation Package
