55 Degree Turning insert

Request a Quote

View All: http://cuttingtoolcn.com/turning-insert-thickness.html

The 55 degree turning, also known as a D style turning insert, supports multiple-angle cutting and quick changing. It can be also used to cut heat-resistant alloy, austenitic stainless steel and hard steel.

Brands use LONNZ turning inserts

Kennametal, Mitsubishi, Sandvik, Seco/Carboloy, Hitatchi, Iscar, Ingersol, Manchester, Newcomer, Sumitomo

Features

Insert Material: Carbide
Finish: PVD Coated
ISO Range: P10-40 M05-30 K10-K30

Parameters

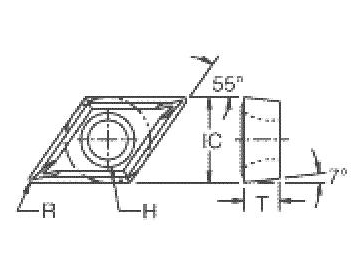

Model	IC(in)	Side length (in)	T(in)	R(in)	H(in)	screw	thread pitch	plug taps	drill size	torx
DCGT21.50.5	1/4	.305	.094	.008	.110	TS-25.45-6M2	2.5mm X .45 pitch (6mm long)	M02.5 X 0.45 HSS 3FL plug tap	#46	T7
DCGT21.51	1/4	.305	.094	.016	.110	TS-25.45-6M2	2.5mm X .45 pitch (6mm long)	M02.5 X 0.45 HSS 3FL plug tap	#46	T7
DCGT32.50.5	3/8	.457	.156	.008	.173	TS-4.7-10M1	4mm X 0.7 pitch (10mm long)	M04 X 0.7 HSS 4FL plug tap	#30	T15
DCGT32.51	3/8	.457	.156	.016	.173	TS-4.7-10M1	4mm X 0.7 pitch (10mm long)	M04 X 0.7 HSS 4FL plug tap	#30	T15
DCGT32.52	3/8	.457	.156	.031	.173	TS-4.7-10M1	4mm X 0.7 pitch (10mm long)	M04 X 0.7 HSS 4FL plug tap	#30	T15
