35 Degree Turning insert
Request a Quote
Features
- The 35 degree turning insert can be used for medium to rough turning of cast iron and nonferrous metal.
- Insert Shape: 35°shape indexable blade
- Tool Material: Carbide
- insert Style: TNMG
Parameters

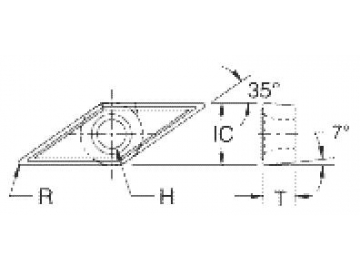

| Model | IC(in) | Side length (in) | T(in) | R(in) | H(in) | screw | thread pitch | plug taps | drill size | torx |
| VCGT220.5 | 1/4 | .437 | .125 | .008 | .114 | TS-25.45-6M2 | 2.5mm X .45 pitch (6mm long) | M02.5 X 0.45 HSS 3FL plug tap | #46 | T7 |
| VCGT221 | 1/4 | .437 | .125 | .016 | .114 | TS-25.45-6M2 | 2.5mm X .45 pitch (6mm long) | M02.5 X 0.45 HSS 3FL plug tap | #46 | T7 |
| VCGT221 | 3/8 | .654 | .187 | .008 | .173 | TS-4.7-10M1 | 4mm X 0.7 pitch (10mm long) | M04 X 0.7 HSS 4FL plug tap | #30 | T15 |
| VCGT331 | 3/8 | .654 | .187 | .016 | .173 | TS-4.7-10M1 | 4mm X 0.7 pitch (10mm long) | M04 X 0.7 HSS 4FL plug tap | #30 | T15 |
| VCGT332 | 3/8 | .654 | .187 | .031 | .173 | TS-4.7-10M1 | 4mm X 0.7 pitch (10mm long) | M04 X 0.7 HSS 4FL plug tap | #30 | T15 |
