Round Turning insert
Request a Quote
Features
- Round turning inserts are used for EWT Ci0 and other wood lathe tool
- The hardness of hard alloys will remain for a longer period of time when compared to steel.
- Rotated cutters smoothly cut edges without sharpening.
Parameters

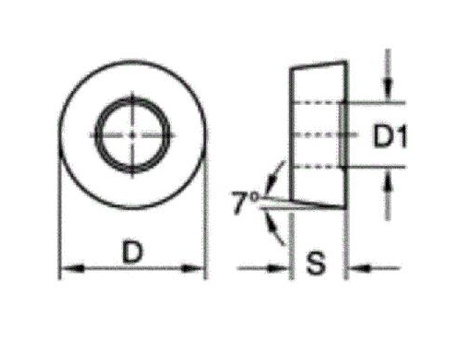

| Model | D（in） | S(in) | D1(in) | Screw | Thread Pitch | Plug Taps | Drill Size | Torx |
| RCGT0803M0 | 0.315 | 1/8 | .134 | TS-3.5-7M1 | 3mm X 0.5 pitch (7mm long) | M03 X 0.5 HSS 3FL plug tap | #39 | T7 |
| RCGT10T3M0 | 0.394 | 5/32 | .173 | TS-35.6-9M1 | 3.5mm X 0.6 pitch (9mm long) | M03.5 X 0.6 HSS 3FL plug tap | #32 | T15 |
| RCGT1204M0 | 0.472 | 3/16 | .173 | TS-35.6-9M1 | 3.5mm X 0.6 pitch (9mm long) | M03.5 X 0.6 HSS 3FL plug tap | #32 | T15 |
