80 Degree Turning insert

Request a Quote

View All: http://cuttingtoolcn.com/turning-insert-thickness.html

80 degree turning inserts, also called C style turning inserts, are used in turning processes for manufacturing workpieces in a range of sizes, from small to large.When the turning insert is cutting workpieces, the service life is affected by speed, feed, and depth. During installation, users must ensure the cutting insert seat is not damaged, dust free, and should not produce any chips when machining. Compressed air can be used to clean the insert seat.

Brands use LONNZ turning inserts

INGERSOLL CUTTING TOOL, KYOCERA, SANDVIK COROMANT, SUMITOMO, ULTRA-DEX USA, WALTER VALENITE and WIDIA

Features

Style: CCMT
Chip-Breaker: MM
Application: Medium
insert Shape: 80 Degrees
insert Material: Carbide
Coating: MTCVD
Mounting Style: Screw Clamp
Rake :Positive
Standard: ISO

Parameters

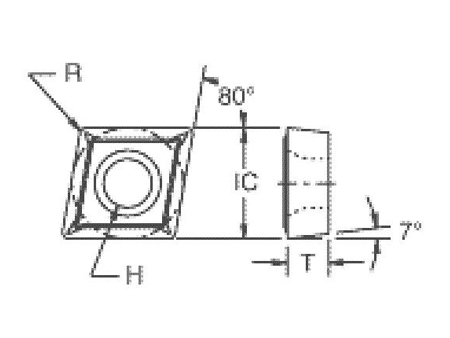

Model	IC(in)	T(in)	R(in)	H(in)	Screw	Thread Pitch	Plug Taps	Drill Size	Torx
CCGT21.50.5	1/4	.094	.008	.110	TS-25.45-6M2	2.5mm X .45 pitch (6mm long)	M02.5 X 0.45 HSS 3FL plug tap	#46	T7
CCGT21.51	1/4	.094	.016	.110	TS-25.45-6M2	2.5mm X .45 pitch (6mm long)	M02.5 X 0.45 HSS 3FL plug tap	#46	T7
CCGT32.50.5	3/8	.156	.008	.173	TS-4.7-10M1	4mm X 0.7 pitch (10mm long)	M04 X 0.7 HSS 4FL plug tap	#30	T15
CCGT32.51	3/8	.156	.016	.173	TS-4.7-10M1	4mm X 0.7 pitch (10mm long)	M04 X 0.7 HSS 4FL plug tap	#30	T15
CCGT32.52	3/8	.156	.031	.173	TS-4.7-10M1	4mm X 0.7 pitch (10mm long)	M04 X 0.7 HSS 4FL plug tap	#30	T15
CCGT430.5	1/2	.187	.008	.217	TS-5.8-10M1	5mm X 0.8 pitch (10mm long)	M05 X 0.8 HSS 4FL plug tap	#19	T20
CCGT431	1/2	.187	.016	.217	TS-5.8-10M1	5mm X 0.8 pitch (10mm long)	M05 X 0.8 HSS 4FL plug tap	#19	T20
CCGT432	1/2	.187	.031	.217	TS-5.8-10M1	5mm X 0.8 pitch (10mm long)	M05 X 0.8 HSS 4FL plug tap	#19	T20
