Universal Testing Machine (Dual Column) GT-K01
The GT-K01 dual-column universal testing machine performs a wide range of mechanical evaluations, including tensile, compression, bending, and shearing tests. This versatile testing system is suitable for a variety of materials such as rubber, plastic, leather, metal, fabric, paper, packaging and construction materials. It is a basic test equipment for quality control, receiving inspection, physical test, mechanics research, and material development.

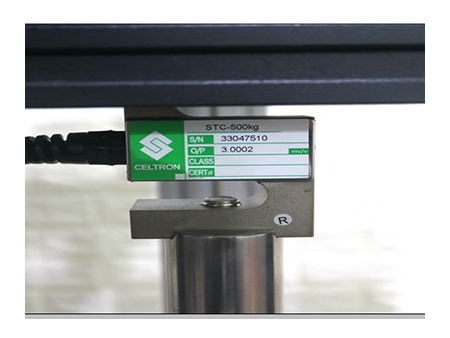

Interface of Software- Force sensor
To measure force, and transfer load data

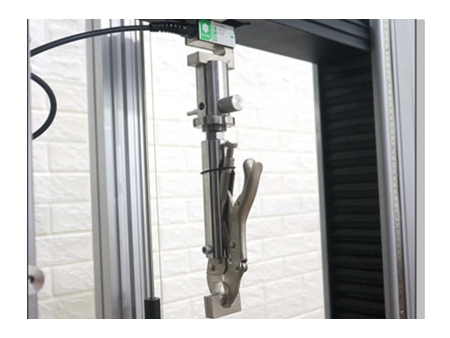

- Universal grips
Usually, we will provide a set of manual grips as standard accessories. But, the fixture can be customized as needed.
- Fix bolt for manual upper/lower limit
Used to manually set the upper stroke limit switch of the machine.
- Punctuation elongation fixture
Used to punctuate the elongation fixture.
- Scale
Used to mark the calibration position for the extension clamp.
- Fix pin
Used to secure the frame for the punctuate elongation fixture and adjust its position (when start or stop).
- Emergency stop
E-stop (power)
- Remote controller
Can be used for doing some simple operation, such START / STOP running, controlling of fixture up/down going.
- Drive system: servo motor, servo drives, worm gear reducer and ball screw
- Control system: using Pulse Command control for improved accuracy and ease of operation
- Wide speed control range: 0.001–1000 mm/min
- Intermediate plate adjustment provides both rapid coarse and slow fine tuning
- The material test machine automatically returns to the starting position and saves test data after testing
- Data transmission mode: RS232 interface
- This universal testing instrument supports multiple control modes including constant speed, precise positioning, constant power, constant stroke, and multi-level control to meet general testing requirements
- Testing space with a 400mm standard test width
- Extensive testing space: 1200mm of plate travel (excluding fixture), customizable to meet specific height requirements
- Full movement travel: encoder resolution 1800 P/R for 4-time increased positional accuracy
- LINE DRIVE encoder with exceptional anti-interference ability and 0.001mm resolution
- Safety protection: this material test machine is configured with overload emergency stop, upper/lower stroke limit switches, automatic leakage protection, and a break-point auto-stop function
Key Specifications
| Model | GT-K01 |
| Max. Capacity | 5kN,10kN, 20kN |
| Display | Computer display |
| Force Resolution | 1/100,000 |
| Force Accuracy | ≤ /-0.5% |
| Stroke Resolution | 0.001 mm |
| Extensometer Resolution | 0.001 mm |
| Test Speed | 0.001-1000mm/min |
| Walking space | 1400mm (can be customized) |
| Force Unit Switch | Kgf, N, Ibf, g, ton, MPa |
| Stop Mode | Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function |
| Machine Drive | Servo motor drive, synchronous wheel and precision ball screw drive |
| Power Supply | AC 220V 50/60HZ 10A |
| Dimensions (W×D×H) | 110×70×240cm |
| Weight | 370kg |
Standards
SATRA TM5, TM53, TM52, TM51, TM108, TM113, TM117, TM118, TM120, TM123, TM149, TM162, TM401, TM 411, TM 410,
ASTMD 751/2209 /412/624/3512 FIA 1206,
BS5131- 3.7, 5.11, 5.13, BS 5131-2.6
ISO22650, ISO 19958, ISO 3377-1, ISO 3377-2, ISO 11644, ISO 20866, ISO 20867, ISO19957, ISO20874, ISO20344-5.2.4, ISO 20345-5.3.1.2, ISO17698, ISO20875, ISO22777, ISO22776, ISO22654, ISO20863, ISO20876, ISO17695, ISO17697, ISO34-1, ISO36, ISO37, ISO 17708, ISO 17696, ISO17706, ISO 22650
AS/NZS 2210.2-5.2.4
DIN 53331,
GB/T 3903.8, GB/T 3903.9, GB/T3903.14 ,GB/T3903.20, GB/T3903.21, GB/T3903.22, GB/T 3903.23, GB/T 3903.24, GB/T 3903.25, GB/T 3903.26, GB/T 3903.29, GB/T3903.32,GB/T 3903.39,GB/T 3903.40, GB/T 3903.43, GB/T 4689.20, GB/T20991-5.2.4, GB 21148-5.3.1.2, GB/T 17928, GB/T529, GB/T528, GB/T532, GB/T11413, GB/T21396
QB/T 2711, QB/T2675, QB/T2883, QB/T4118, QB/T4198
HG/T 2726, HG/T 2877, HG/T4805
Accessories
| Standards Accessories | 1set | Manual grips |
| 1pc | English operation software | |
| 1pc | Cable for PC | |
| 1set | Extensometer | |
| Option Accessories | Optional | Desktop computer |
| Optional | Other grips |
