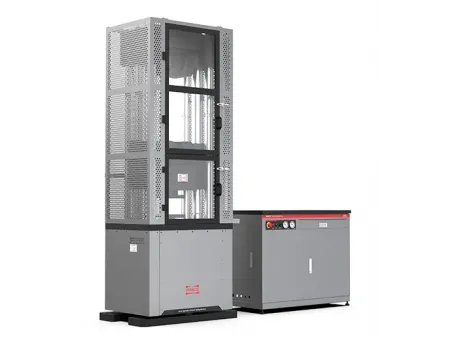

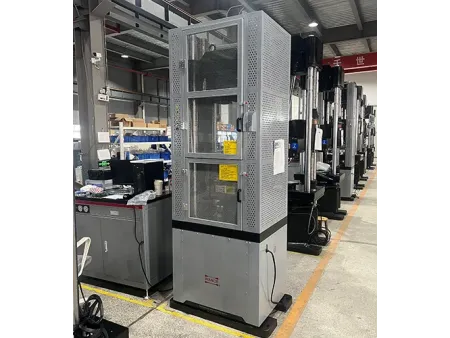

Servo-Hydraulic Universal Testing Machine, Dual Space, Wedge Action Grip

Request a Quote

Website: http://testingmachine-en.com/2-1-servo-hydraulic-universal-testing-machines.html

HUT-A Series (900kN-3000kN)

The servo-hydraulic testing machine with dual-test-space features a lower-mounted actuator and two fully independent test spaces:

Upper test space (between the upper and lower crossheads): primarily used for tensile testing.
Lower test space (between the lower crosshead and the test table): designed for compression, bending, shear, and flexural tests.

Both spaces can be configured by raising or lowering the lower crosshead through a lead-screw system, enabling flexible adjustment to accommodate different specimen sizes and test setups. This testing machine is widely used for tensile, compression, bending, shear, and flexural testing of metallic materials. With appropriate grips, it can also support a broad range of tests on various structural components.

Applications

Fasteners, rebar, chain, welds, castings

Standards

ISO 7500-1, ISO 9513, ISO6892, ISO 15630, ISO 15835, BS 4449, ASTM E8, ASTM E 83, ASTM E4, ASTM A370, ASTM A416

Features

High-Rigidity Load Frame
Heavy-duty dual-column structure with outstanding axial and lateral stiffness
High and stable alignment accuracy ensures reliable measurement
High-Resolution Draw-Wire Displacement Sensor
Excellent displacement resolution for precise movement detection, providing stable and accurate measurement
Durable Protective Enclosures
High-strength PC safety shield that saves installation space
Easy-to-operate design offering enhanced operator protection
Clean and Organized Test Area
Rubber dust covers on the test table minimize contamination
Dust curtains on lower wedge grips help maintain a tidy, low-maintenance work environment
Low-Friction Hydraulic Actuator
Corrosion-resistant and wear-resistant cylinder construction
Superior damping characteristics with a long stroke range for smooth, controlled loading
High-Accuracy Load Cell
Excellent resistance to lateral forces and strong overload capability
High-Efficiency Hydraulic Power Unit
Compact integrated design
Differential-pressure following control reduces heat generation and lowers energy consumption
Comprehensive Protection System
Mechanical limit protection
Overload protection and motor overheat protection
Emergency stop function for safe and immediate shutdown

Customization

The vertical test space can be customized according to specific test requirements.

Specifications

Model	HUT305A	HUT605A	HUT106A	HUT206A	HUT306A
Capacity, kN	300	600	1000	2000	3000
Calibration accuracy	Class 0.5
Force accuracy	＞±0.5%
Force range	1%-100%FS
Force resolution	1/500,000FS
Extension range	1%-100%FS
Extension accuracy	＞±0.5%
Extension resolution	1/500,000 of max. extension
Position resolution, mm	0.004
Position accuracy	＞±0.5% of reading
Actuator (piston) stroke, mm	150	250	250	250	300
Actuator (piston) speed, mm/min	0-180	0-140	0-90	0-70	0-100
Middle crosshead speed, mm/min Only for test space adjustment	350	270	310	360	240
Force loading speed, FS/s	0.05%-2%
Column	4	6	6	6	6
Diameter of round specimens, mm	⌀10-⌀20 ⌀20-⌀32	⌀10-⌀21 ⌀21-⌀31 ⌀31-⌀40	⌀12-⌀23 ⌀23-⌀35 ⌀35-⌀45 ⌀45-⌀55	⌀15-⌀30 ⌀30-⌀55 ⌀55-⌀70	⌀30-⌀70 ⌀70-⌀110
Thickness of flat specimens, mm	2-13 13-25	2-16 16-30	2-20 20-40	10-40 40-70	10-60 60-100
Compression platens, mm	⌀120	⌀150	200x200	⌀240	⌀280
Hydraulic power unit dimension (Length x Width x Height), mm	1150x600x900				1150x630x1000
Hydraulic power unit weight, kg	300				400
HPU flow rate, L/min	5	5	5	7.2	12
Power, kW	2.5	3.5	4	6	6
Electric supply	380V, 50Hz, three-phase, 5-line
Frame weight, kg	1500	2500	3500	6800	10220

Dimensions (mm)

Model	Overall dimension AxBxC,mm	Max. tensile space D,mm	Max. compression space E,mm	Test width F,mm
HUT305A	820x570x1955	520	520	410
HUT605A	940x650x2400	710	700	435
HUT106A	1020x670x2600	750	660	450
HUT206A	1370x820x3150	900	750	730
HUT306A	1320x950x3958	1200	1000	530
