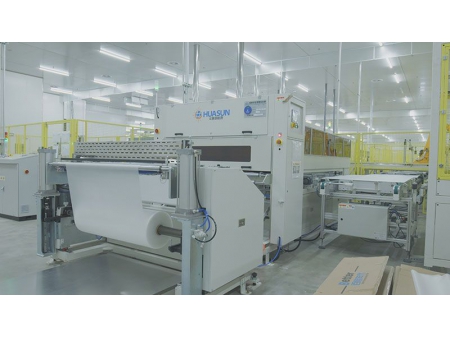

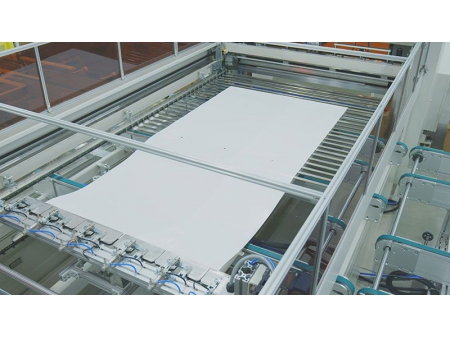

EVA/TPT Backsheet Cutting and Layup Machine
Request a Quote
Used for automatically cut and layup second EVA film and TPT backsheet in solar panel production line
An EVA/TPT cutting & layup machine adopts high-precision and reliable cutting and layup technologies to provide efficient solar panel production solutions to meet customers’ high requirement.
Technical Parameters
| Item | Parameters |
| Panel size | (1,680-2,650)*(992-1,500)mm |
| Cycle time | 20s |
| Cutting accuracy | ±1.5mm |
| Laying accuracy | ±1.5mm |
| Overall dimensions (L*W*H) | 6,000*2,320*2,000mm |
| Voltage | AC 380V, 3 phase |
| Power | 5kW |
| Air pressure | 0.5-0.7MPa |
| Maximum material roll diameter | ≤800mm |
Features
- The standard hot melt function ensures that tailings will not fall off the machine;
- Automatic correction, automatic detection of joints, automatic throwing and hole punching;
- The hob cutting method prevents the material from be sticked onto the cutter to improve the cutter durability;
- Hole punching tools can be customized according to customer requirements, such as types of flat hole, original hole and oval hole.
