Plastic Cup Packaging Machine
The plastic cup packaging machine is an automated system designed for efficient counting and packaging of disposable plastic cups. The integrated cup counter separates cup stacks and prepares them for wrapping, ensuring fast, accurate, and hygienic packaging.
| Model | |
| Packaging Rows | 1, 2, 3, or 4 (optional) |
| Cup diameter | 55-100mm |
| Packaging speed | 20-50 bag/min |
| Packaging length | 260-800mm |
| Packaging width | 250-450mm |
| Voltage | 220V, 50Hz (can be customized) |
| Power | 3.5kW |
| Packaging material | OPP/HDPE heat sealing film |
| Packaging film thickness | 0.02-0.06mm |
| Machine dimensions (L×W×H) | 5500×1000×1500mm |
| Machine weight | 600kg |
-
- 1
Controlled by PLC program, integrating stacking, counting, bag/film sealing, and cutting. (Optional date printer available)
-
- 2
Equipped with high-quality components from international brands for pneumatic elements, PLC, and frequency inverters
-
- 3
Compact structure with stable operation and easy controls. Features include dual frequency inverter control, random bag length cutting, and PID temperature control, suitable for various packaging films
-
- 4
Double-servo cup counter with dual-way counting system for higher output efficiency
-
- 5
Adjustable production speed, with cup counting range from 1 to 100
-

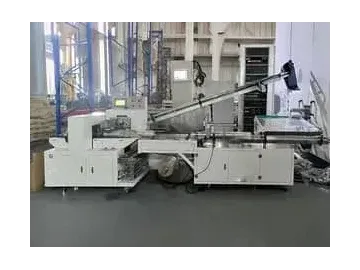

- Plastic cup packaging machine
-
- Cup feeding section
-

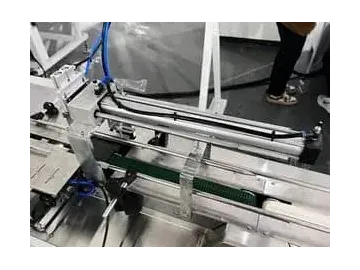

- Cup counting section
-
- Sealing section
-
- Film feeding roll
-
- Film traction system
-
- Cups discharge conveyer
-
- Finished packaged cups
