Rim rolling machine for curling the rims of disposable plastic cups

Enhance your disposable cup production line with the plastic cup rimming machine. Designed specifically to curl rims of plastic cups made from materials like PVC, PS, PET, modified PP, and environmentally friendly degradable PP. This system automates the entire workflow, including cup feeding, rim rolling, cup discharge, and stacking processes, ensuring efficient and consistent operation.

Applicable Materials

PVC, PS, PET, modified PP, eco-friendly degradable PP

Applications

Ideal for automatic rim rolling of disposable plastic cups.
Reach out today to see how this automated rimming machine can boost your production efficiency.

Specifications
Main motor power 2.2kW
Conveying motor power 0.09kW
Heating power 13kW
Power supply 380V, 60Hz
Air pressure 0.6MPa
Cup mouth diameter 50-120mm
Production capacity 400-800 cups/min
Dimensions 5000×1100×1300mm
Weight 1t
Details

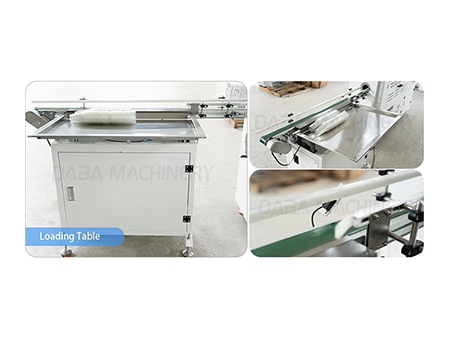

  • Loading Table

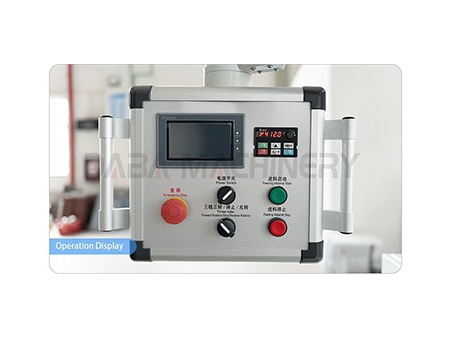

  • Operation Display

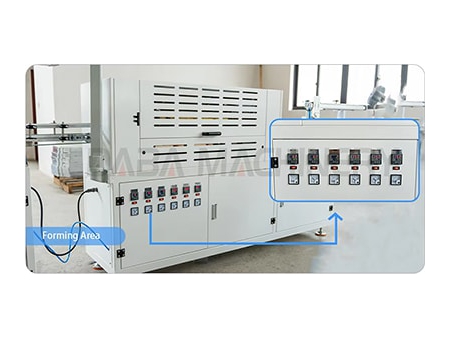

  • Forming Area
