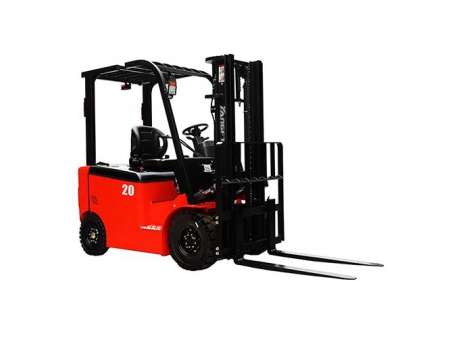

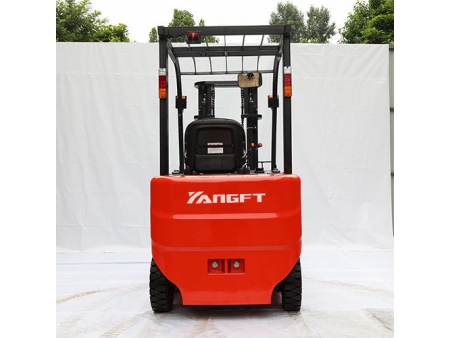

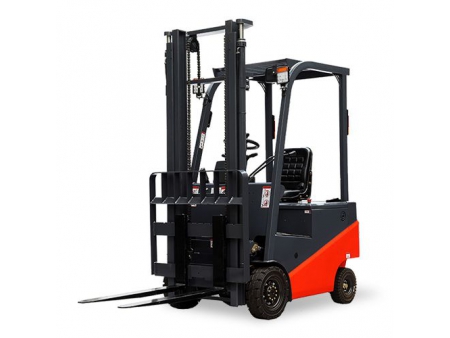

Electric Forklift 1-2.5 Tonne
Request a Quote
L Series
The light-duty material handing forklift is suitable for confined space thanks to its compact design and the kerb weight of 2450 kg. In the full loaded conditions, its travel speed can reach 15 km/h.
- 1000-2500 kg
- 3000 mm
- 11-15 km/h
- 1650-2050 mm
Features
- The electric forklift adopts the neutral safety switch to prevent accidental startups.
- The forklift is equipped with an advanced control system that enables sophisticated speed control and torque control protection to realize efficient heat dissipation.
Applications
Material handling in limited space, such as warehouses, logistics centers and delivery centers.
Forklift Truck Components
- Steering Wheel and Control Valve
- Safety Seat
- Side Shifter and Pneumatic Tire
- Overhead Guard
- Mast
- Electronic Control
- Maintenance-free Lead-acid Battery
- Headlight
- Multifunction Display
- Rear Tail Light
Technical Specifications
Model | | | | | |||
Characteristics | Power | Battery | |||||
Capacity | kg | 1000 | 1500 | 2000 | 2500 | ||
Load Centre | mm | 400 | 500 | 500 | 500 | ||
Lift Height | mm | 3000 | 3000 | 3000 | 3000 | ||
Min. Turning Radius | mm | 1650 | 2050 | 2050 | 2050 | ||
Performance | Travel Speed | Load/no load | km/h | 11/13 | 13/15 | 13/15 | 13/15 |
Lift Speed | Load/no load | mm/s | 100/250 | 315/335 | 315/335 | 315/335 | |
Dimensions | Total Length | Without fork | mm | 1655 | 2155 | 2155 | 2155 |
Total Width | Wheel | mm | 920 | 1060 | 1060 | 1060 | |
Chassis | mm | 930 | 1088 | 1088 | 1088 | ||
Max. Height | mm | 3870 | 4100 | 4100 | 4100 | ||
Mast Height | mm | 2060 | 2000 | 2000 | 2000 | ||
Chassis | Tyre | Front | 15*4 1/2-8 | 650-10 | 650-10 | 650-10 | |
Rear | 3.50-5 | 500-8 | 500-8 | 500-8 | |||
Wheelbase | mm | 1045 | 1425 | 1425 | 1425 | ||
Service Weight | No load | kg | 2450 | 2450 | 2450 | 2450 | |
Power | Battery | Voltage/capacity | V/Ah | 48V/225AH | 48V/225AH | 48V/400AH | 48V/480AH |
Motor | Drive motor | kW | 4 | 5.5 | 6.5 | 6.5 | |
Pump motor | kW | 4 | 5.5 | 6.5 | 7.5 |
Why are electric forklifts getting popular?
- The light-duty electric forklift adopts a compact design to offer flexible material handling solutions in complex and confined space.
- With less exhaust emission, the electric forklift can secure drivers’ health.
- The forklift allows for quiet operation since it produces less noise.
- Lower operational and maintenance costs make the electric forklift increasingly popular in various industries.
What are the advantages of this 48V electric forklift?
The light-duty electric forklift is suitable for indoor and outdoor operation. With enhanced safety measures and a compact design, the forklift can protect drivers and goods from bumping during work.
-
