Logging Truck
SPECIAL TRUCKS

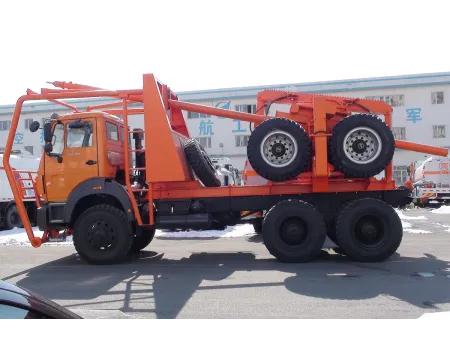

Our all-wheel drive logging truck is purpose-built for high-load timber transportation across rugged terrains. Powered by a 420HP engine, paired with a 12-speed transmission and dual reduction axles, it provides strong and consistent traction even under full load. With a maximum hauling capacity of 45 tons, this special truck is designed to handle steep inclines, muddy forest paths, and unpaved mountain roads, making it a reliable solution for forestry operations in all weather conditions.
Engineered for tropical rainforest and mountainous logging routes, this all-wheel drive truck handles 40-ton timber loads with ease. Equipped with a 420HP engine, it delivers powerful traction for stable driving across muddy and uneven terrains, making it the ideal choice for high-efficiency timber transport.
- Engine power 420HP / 2100 rpm
- Towing capacity 40 tons
- Drive configuration All-wheel drive
| Model | |
| Driving Type | 6×6 |
| Cab | Cab Exterior Metal bumper Three-step ladder Exterior sun visor Sun roof (manual) Rear view mirror (manual adjustment) Cab Interior Air-sprung suspension driver's seat Cooling and heating air conditioner Steering wheel (with adjustable height and angle) Door lock (manual) Radio (with MP3 player) Digital instruments |
| Engine | Type: WP12.420E32 Version: EURO II Displacement (I): 11,596 Max. Power (HP/rpm): 420/2100 Max. Torque (N.m/rpm): 1750/1200~1500 Cylinder: 6 in-line |
| Transmission | 9JS180 / 15.53-1 Gears: 9 speed forward Synchromesh or Constant Mesh: Constant Mesh Transfer Box: yes Power Take-Off (P.T.O.): not available |
| Steering System | 8098 Recirculating ball steering gear, hydraulic booster |
| Front Axle | 7000kg, non-drive steering, differential lock |
| Middle & Rear Axle | 13000kg 13000kg, double reduction driving axle, differential lock |
| Suspension | Front 10pcs / Rear 13pcs hard parabolic spring |
| Performance Data | Gradeability@GVM: 30% Max. Geared Road Speed: 80km/h |
| Tyre | Size and Ply Rating:12.00R24-20PR Steel Rim |

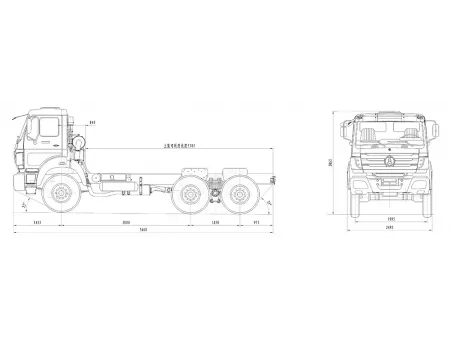

| Dimensions | Wheel Base (WB): 3800 1450mm Overall Length (OL): 8000mm Overall Width (OW): 2700mm Overall Height (OH): 3670mm Front Overhang (FOH): 1435mm Rear Overhang (ROH): 1600mm |
| Total Vehicle Weight | 15500kg |
*The above data is subject to the actual product.
