Sewage Suction Truck

Request a Quote

Website: http://heavytrucks-en.com/3-2-sewage-suction-truck.html

SPECIAL TRUCKS

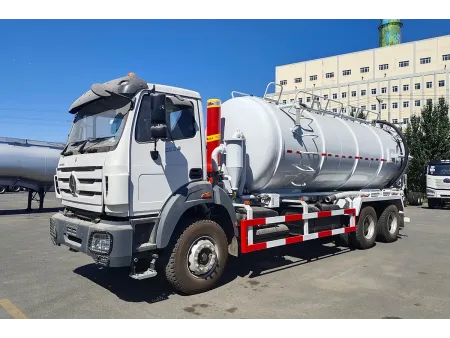

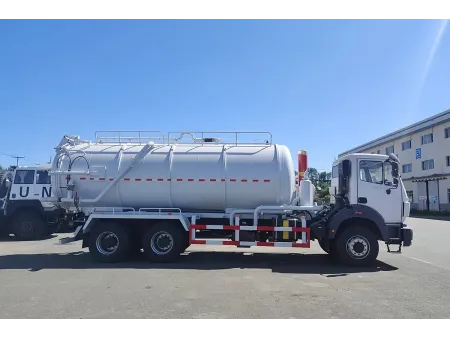

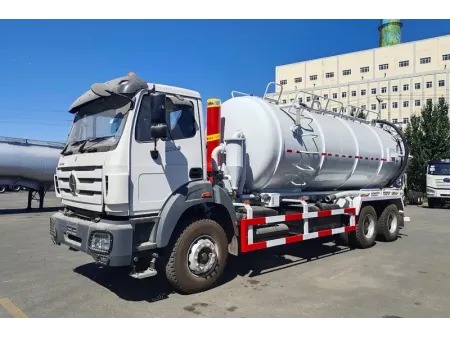

This 6×4 sewage suction truck is built for high-efficiency waste collection and transport. Powered by a 380 HP engine paired with a 12-speed transmission and dual reduction axle drivetrain, it delivers strong traction and climbing performance. The 18 m³ tank capacity enables large-volume sewage removal in a single trip, minimizing downtime and improving operational efficiency across urban, industrial, or construction environments.

Engine power 380 HP / 2200 rpm
Tank volume 18 m³
Gradeability 30% (fully loaded)
Top speed 80 km/h
Drive type 6×4

Dimensional Drawing

Specifications

Model	2638 Sewage Suction Truck
Driving Type	6×4
Cab	Cab ExteriorMetal bumper Three-step ladder Exterior sun visor Sun roof (manual) Rear view mirror (manual adjustment) Cab InteriorAir-sprung suspension driver's seat Cooling and heating air conditioner Steering wheel (with adjustable height and angle) Door lock (manual) Radio (with MP3 player) Digital instruments
Engine	Type: WP10.380E32 Version: EURO II Displacement (I): 9,726 Max. Power (HP/rpm): 380/2200 Max. Torque (N.m/rpm): 1460/1400~1600 Cylinder: 6 in-line Engine-Driven Power Take-Off (P.T.O.): yes
Transmission	12JS160T / 15.53-1 Gears: 12 speed forward Synchromesh or Constant Mesh: Synchromesh Transfer Box: not available Power Take-Off (P.T.O.): not available
Steering System	8098 Recirculating ball steering gear, hydraulic booster
Clutch	Ø430mm single dry friction disc, diaphragm spring, pushing type
Fuel Tank	400L (iron)
Front Axle	7500kg, non-drive steering
Middle & Rear Axle	13000kg 13000kg, double reduction driving axle, differential lock
Suspension	Front 13pcs / Rear 13pcs hard parabolic spring
Brakes	Service: dual circuit air brakes Emergency/Parking: spring potential brake Auxiliary: EVB (optional ABS)
Electrical Equipment	Alternator: 70Amp Starter Motor: 5.5kW Batteries: 2×12V – 135AH
Performance Data	Gradeability@GVM: 30% Max. Geared Road Speed: 80km/h Final Drive Ratio: 5.263 (optional 4.769, 5.921)
Tyre	Size and Ply Rating: 12.00R20-18PR Steel Rim
Upper Body	Effective drum volume of 12-18m³
Dimensions	Wheel Base (WB): 4450 1450mm Overall Length (OL): 9500mm Overall Width (OW): 2500mm Overall Height (OH): 3670mm Front Overhang (FOH): 1435mm Rear Overhang (ROH): 1900mm
Total Vehicle Weight	15500kg

*The above data is subject to the actual product.

Applications

Oilfield support: Can be equipped with all-wheel drive for efficient removal of sludge and wastewater on muddy oilfield roads; designed to operate reliably in both extremely hot and cold environments.
Construction sites: Short wheelbase design allows flexible maneuvering through congested job sites; capable of pumping out concrete waste and water from deep pits.
Municipal sanitation: Ideal for urban sewer maintenance, offering precise suction of silt and sludge in city drainage systems.
Industrial environmental protection: Built with corrosion-resistant materials for safe transport of hazardous liquids; suitable for chemical plant operations in confined or complex pipeline areas.
Agricultural irrigation: Fitted with high-capacity pumps to manage irrigation runoff and drainage in muddy farmland conditions.
