Nomex Self-Closing Wrap

Request a Quote

Website: http://sleeving-product.com/nomex-self-closing-wrap-7-6.html

NXST2105

• Material: Nomex® fiber PPS
• Color: Army green
• Operating Temperature: -70°C to 200°C (short-term up to 250°C)
• Cutting Method: Cold cutting
• Packaging: Paper reel

Now

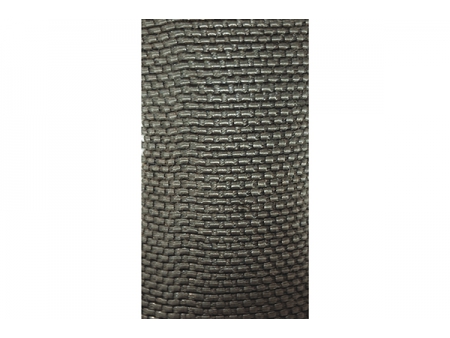

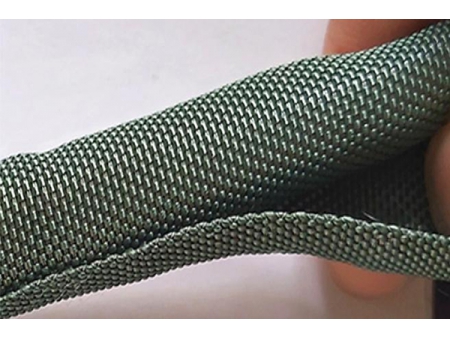

NXST2105 series is a self-closing wrap manufactured from a composite of Nomex® fiber and polyphenylene sulfide (PPS). It combines excellent heat resistance, abrasion resistance, and chemical resistance. This design reduces direct exposure of cables to oil and dust while providing reliable mechanical protection, thereby extending service life. Additionally, the open structure allows for easy installation and maintenance.

Applications

This self-closing wrap is an excellent solution for cable protection in harsh environments and is commonly used for protecting wire harnesses in aerospace equipment.

Certifications

Parameters

Model	Flat Width (mm)	Application Range (mm)	Thickness (mm)	Packaging Length (m/reel)
NXST21050308	3	1~4	0.8±0.2	500
NXST21050608	6	4~7	0.8±0.2	100
NXST21050808	8	7~9	0.8±0.2	100
NXST21051008	10	9~11	0.8±0.2	100
NXST21051308	13	11~15	0.8±0.2	100
NXST21051608	16	15~18	0.8±0.2	50
NXST21051908	19	18~23	0.8±0.2	50
NXST21052508	25	23~28	0.8±0.2	25
NXST21052908	29	28~31	0.8±0.2	25
NXST21053208	32	31~34	0.8±0.2	25

Available in custom cut lengths.
Custom sizes available upon request.

For detailed information, please download the product datasheet.
