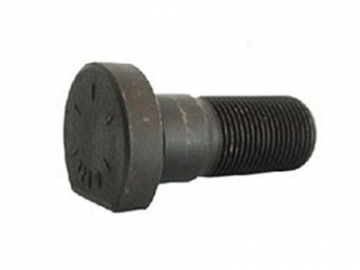

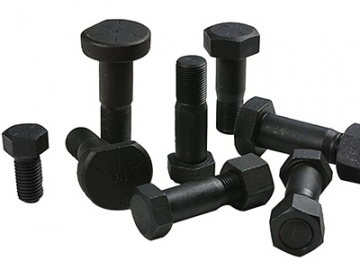

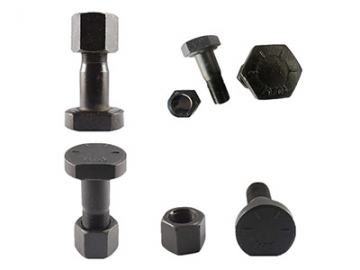

Segment Bolt and Nut
Request a Quote
HUIXIN MINDA plow bolts are manufactured through cold heading process utilizing raw material of 40Cr steel. Heat treatment technique is adopted to enhance the bolt hardness to 12.9 grade, allowing that the plow bolts are suited to applications that require high wear resistance performance. Our plow bolts are mainly suited to fasten the blades to bulldozers of brands such as CAT, Komatsu, etc. With our rich experience in bolt manufacturing and supplying, we are able to provide you with high quality plow bolts and nuts to meet your drawings and specific needs.
Basic Information
| Material | 40Cr |
| Case Hardening | HRC38-42 |
| Colors | Black or yellow |
| Technique | Casting |
| Application | Excavator, loader, bulldozer, etc. |
| Grade | Grade 12.9 |
| Warranty Period | 2000 hours (service life up to 4000hours) |
| Certification | ISO9001-9002 |
| Segment Bolts | |||
| Diameter | Length (mm) | Length (in.) | Reference No. |
| 1/2"-20 (B) | 40 | 1.57 | 9W9265, CR4791 |
| 5/8"-18 (B) | 47 | 1.85 | 3S8182 |
| 5/8"-18(B) | 53 | 2.09 | 6V0937, CR4413 |
| 3/4"-16 (B) | 60.5 | 2.38 | 3S0336, CR2070 |
| 3/4"-16 (B) | 66 | 2.6 | 5P4130, CR4145 |
| 7/8"-14 (B) | 65 | 2.56 | 9S2727, CR2621 |
| 7/8"-14 (B) | 76 | 2.99 | 7T1248, CR3876 |
| 7/8"-14 (B) | 81 | 3.19 | 9W8328, CR4688 |
| 1"-14 (B) | 77 | 3.03 | 5P0233, CR2985 |
| 1"-14 (B) | 92 | 3.62 | 5P5422, CR3889 |
| 1 1/8"-12 (B) | 105 | 4.13 | 7T1243, CR5674 |
| M18-1.5 (B) | 60 | 2.36 | 09203-11860, KM790 |
| M22-1.5 (B) | 70 | 2.76 | 154-27-12320 |
| M22-1.5 (B) | 71 | 2.8 | 155-27-12181, KM225 |
| M24-1.5 (B) | 79 | 3.11 | 178-27-11150, KM555 |
| M24-1.5 (B) | 90 | 3.54 | 195-27-12632, KM539 |
| M27-2.0 (B) | 95 | 3.74 | 195-27-33130 |
| Track/Segment Nuts | |||
| Diameter | W.A.F. | Thick | Reference No. |
| M12-1.0 | 19 | 15 | 571946, FT887 |
| M14-1.5 | 22 | 14 | |
| M16-1.5 | 24 | 16 | 5I6125 |
| M18-1.5 | 27 | 18 | 79039445, FT982 |
| M20-1.5 | 30 | 27 | 093-0321 |
| M20-1.5 | 30 | 25 | FT1101 |
| M20-1.5 | 30 | 21 | 9W3361, 79035816, FT2111 |
| M22-1.5 | 32 | 22 | 9W4381, CR5923 |
| M24-1.5 | 35 | 24 | 178-32-11220, KM1491 |
| M24-1.5 | 33 | 29 | 4295785 |
| M24-1.5 | 35 | 24 | SI652 |
| M24-1.5 | 33 | 23 | 150-4742 |
| M27-1.5 | 41 | 41 | 195-32-11221, KM264 |
| M27-2.0 | 41 | 35 | 195-32-41220, KM1151 |
| M30-2.0 | 46 | 35.5 | 4281007 |
| M30-2.0 | 46 | 38 | 195-32-61220, KM1998 |
| M33-2.0 | 50 | 42 | 198-32-31220, KM2029 |
| M33-2.0 | 46 | 40 | 4189671 |
| 7/16"-20 | 19 | 15 | 7K1706, 2B5483, CR2003 |
| 1/2"-20 | 19 | 15 | 6S3419, FT888 |
| 9/16"-18 | 22 | 19 | 7K2017, CR1968 |
| 5/8"-18 | 25 | 19 | 1M1408, CR1250 |
| 3/4"-16 | 28 | 19 | 1S1860, CR1967 |
| 7/8"-14 | 33 | 23 | 2S2140, CR1969 |
| 7/8"-14 | 33 | 35 | 7G6442, CR4136 |
| 7/8"-14 | 32 | 24 | 7T9825, CR4249 |
| 1"-14 | 38 | 25 | 1S6421, CR1970 |
| 1"-14 | 38 | 39 | 7G0343, CR4037 |
| 1"-14 | 38.1 | 25.5 | 2V0250 |
| 1"-14 | 38.1 | 25.5 | 594424, CR3431 |
| 1 1/8"-12 | 42 | 44 | 5P8221, CR3835 |
| 1 1/8"-12 | 54 | 45 | 3T6292, CR5638 |
| M12-1.0 | 19 | 15 | 01803-01218 |
| M14-1.5 | 22 | 20 | 01803-01420 |
| M16-1.5 | 24 | 19 | 01803-01622 |
| M18-1.5 | 27 | 21.5 | 01803-01824, 135-32-11221, KM 382 |
| M20-1.5 | 30 | 24 | 01803-02026 |
| M22-1.5 | 32 | 28.5 | 01803-02228, KM226 |
| M22-2.0 | 32 | 22 | 207-32-51220 |
| M24-1.5 | 36 | 30 | 01803-02430, KM228 |
| M24-2.0 | 36 | 24 | 208-32-51220, KM1635 |
| M27-2.0 | 41 | 32 | 195-27-33141, KM1397 |
| 1/2"-20 | 19 | 15 | 8H5724, CR4896 |
| 9/16"-18 | 22 | 15.5 | 7H3606 |
| 5/8"-18 | 24 | 19 | 7H3607, AC228 |
| 3/4"-16 | 28 | 19 | 7H3608, CR787 |
| 7/8"-14 | 33 | 23 | 7H3609, CR1001 |
| 1"-14 | 38 | 25.5 | 2M5656, CR1270 |
| 1 1/8"-12 | 42 | 24.6 | 3S1356, CR5845 |
