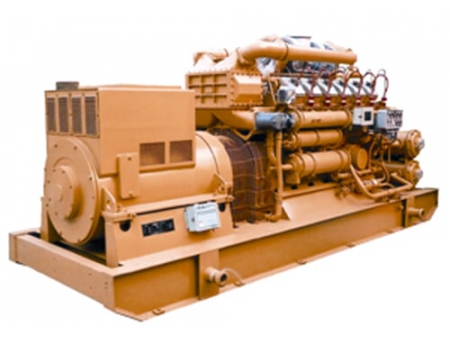

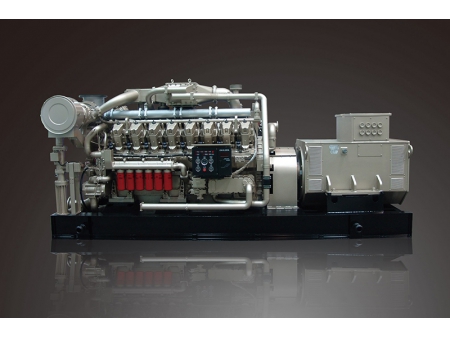

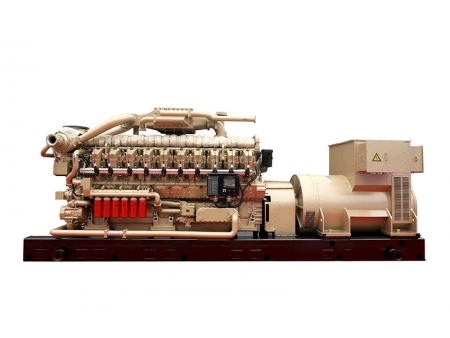

Coal-bed Methane Generator (600-1800 kW)
Request a Quote
- 600 kW gas generator
- 1000 kW gas generator
- 1500 kW gas generator
- 1800 kW gas generator
Click Here to
Advantage
The coal-bed methane generator is powered by coal mine gas for power generation. It is incorporated with waste heat recovery equipment to capture and reuse the thermal energy from engine exhaust.
Features of Coal-bed Methane Generator
- 100% independent intellectual property rights
- Features International mainstream control technology (intelligent engine management system)
- Equipped with advanced air–gas ratio control (TECJET automatic AFR adjustment)
- High-flow, high-pressure intake system designed to accommodate methane concentration variations from 30% to 60%
- Low-pressure intake and lean-burn combustion control technology, improving emissions performance when using low-pressure gas
- Advanced genset management module supporting automatic synchronization and automatic load distribution
- Online maintenance technology, enabling more than 2,500 hours of continuous trouble-free operation
- Digital monitoring technology for full supervision of engine thermal parameters and generator electrical parameters
- Compatible with distributed energy systems, including thermoelectric and thermoelectric cooling configurations
Technical Parameters of Coal-bed Methane Generator
| Genset Model | |||||
| Alternator model | Brushless excitation, automatic voltage regulation | IFC series, siemens technology, brushless excitation, automatic voltage regulation | Brushless excitation, automatic voltage regulation | ||
| Rated power | 600 kW | 1000 kW | 1100 kW | 1500 kW | 1800 kW |
| Rated voltage | 400V/6300V/10500V/480V/13800V | ||||
| Rated frequency | 50/60 Hz | 50 Hz/60 Hz | 50 Hz/60 Hz | 50 Hz/60 Hz | 50 Hz/60 Hz |
| Rated power factor | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Protection class | IP23 | IP23 | IP23 | IP23 | IP23 |
| Insulation class | H | H | H | H | H |
| Engine Model | G12V190ZLW-2 | H16V190ZLW-2 | L12V200ZLW-2 | L20V190ZLWd-2 | L20V200ZLW-2 |
| Type | Four strokes, V-type, turbocharged, inter-cooling, apark plug ignition | ||||
| No. of cylinder | 12 | 16 | 12 | 20 | 20 |
| Bore | 190 mm | 190 mm | 200 mm | 190 mm | 200 mm |
| Stroke | 210 mm | 215 mm | 255 mm | 255 mm | 255 mm |
| Total displacement | 71.5 L | 97.53 L | 96.1 L | 144.6 L | 160.2 L |
| Rated speed | 1000 r/min, 1200 r/min | 1000 r/min | 1000 r/min | 1000 r/min | 1000 r/min, 1200 r/min |
| Rated power | 650 kW | 1200 kW | 1300 kW | 1700 kW | 2000 kW |
| Gas consumption | ≤11000 kJ/kW.h | ≤9500 kJ/kW.h | ≤9000 kJ/kW.h | ≤8600 kJ/kW.h | ≤8600 kJ/kW.h |
| Oil consumption | ≤0.8 g/kW.h | ≤0.6 g/kW.h | ≤0.3 g/kW.h | ≤0.6 g/kW.h | ≤0.3~0.6 g/kW.h |
| Cooling type | Open type-cooling tower/Closed type-vertical or horizontal radiator | ||||
| Lubrication method | Pressure and splash lubrication | ||||
| Starting method | Electric starting | Electric starting | Electric starting | Electric starting | Electric starting/Air starting |
Application Cases
CNPC JICHAI was formed in 1920, we are a prestigious brand in China and is a global leader in internal conbustion engine and generator set manufacturing. Our power solutions are designed to improve your performance and productivity.
