Corrosion & Oxidation Resistant PTFE Membrane Filter Cartridge, PLPT Series

Corrosion & Oxidation Resistant PTFE Membrane Filter Cartridge, PLPT Series
Corrosion & Oxidation Resistant PTFE Membrane Filter Cartridge, PLPT Series
Corrosion & Oxidation Resistant PTFE Membrane Filter Cartridge, PLPT Series
Corrosion & Oxidation Resistant PTFE Membrane Filter Cartridge, PLPT Series
Request a Quote

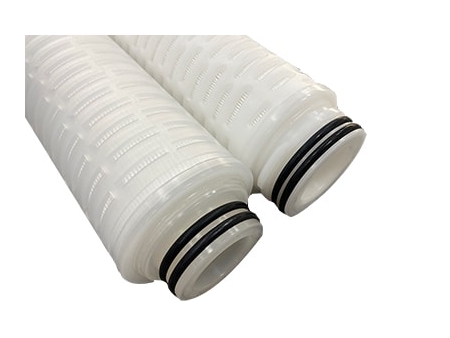

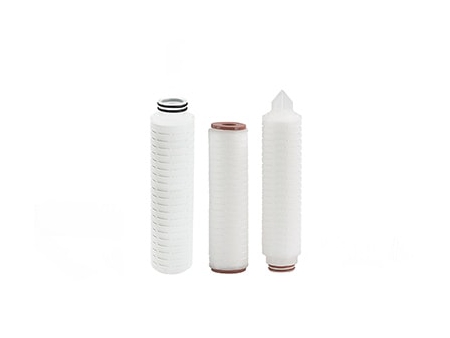

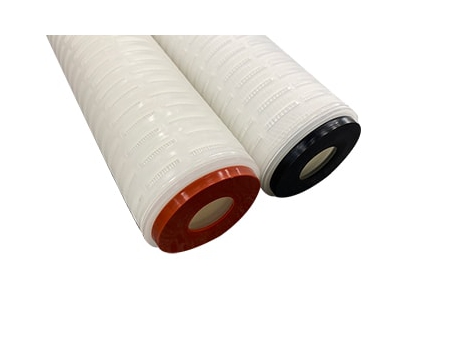

Our corrosion and oxidation resistant PTFE membrane filter cartridge is crafted from hydrophobic PTFE membrane, featuring high resistance to both organic and inorganic chemicals. Ideal for the sterilizing filtration of highly corrosive and oxidizing liquids, the cartridge-to-housing connection employs a reliable O-ring to prevent short-circuiting of airflow and impurities bypassing the filter, ensuring purity downstream.

Materials of Construction
Filter Medium PTFE Membrane
Support/Drainage Polypropylene
Center Rod/Housing/End Cap Polypropylene
Specifications
Length 5", 10", 20", 30", 40"
Micron Rating 0.01~10μm
Max. Operating Temperature 90℃
Max. Differential Pressure 4.0 bar / 21℃
2.4bar / 90℃
Max. Reverse Differential Pressure 2bar/21℃
Steam Sterilization 121℃/30min
Filtration Area 0.6~0.7 m2/10"
Biological Safety Dissolved matter<30mg per 10"
Endotoxin level<0.25EU/ml
Applications
  • Filtration of corrosive liquids
  • Air sterilizing filtration
  • Aseptic protection gas sterilizing filtration
  • Solvent and disinfectant filtration
  • Solvent sterilizing filtration
