Dual-layer PES Membrane Filter Cartridge, DHPS Series

Dual-layer PES Membrane Filter Cartridge, DHPS Series
Dual-layer PES Membrane Filter Cartridge, DHPS Series
Dual-layer PES Membrane Filter Cartridge, DHPS Series
Dual-layer PES Membrane Filter Cartridge, DHPS Series
Request a Quote

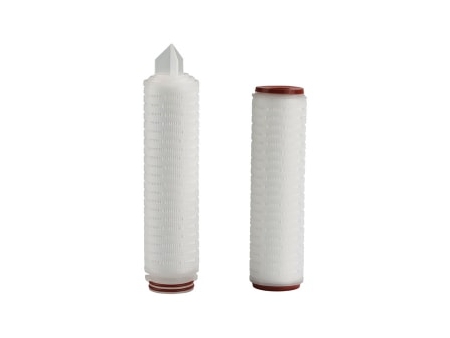

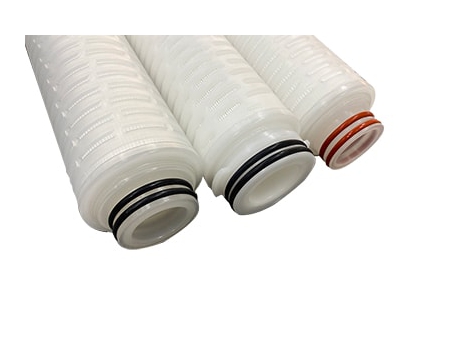

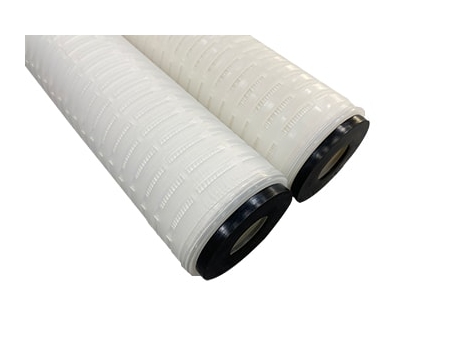

Introducing our innovative dual-layer PES membrane filter cartridge, setting a new benchmark in sterilizing filtration. Crafted with a unique dual-layer hydrophilic polyethersulfone (PES) membrane, this cartridge delivers superior filtration performance and robust bacteria interception capabilities.

Engineered to withstand repeated steam sterilization, our PES membrane filter cartridge meets the exacting filtration requirements of pharmaceutical processes.

Materials of Construction
Filter Medium Dual-layer polyethersulfone (PES)
Support/Drainage Polypropylene
Center Rod/Housing/End Cap Polypropylene
Specifications
Length 5", 10", 20", 30", 40"
Micron Rating 0.1μm, 0.22μm, 0.45μm
Max. Operating Temperature 90℃
Max. Differential Pressure 4.0 bar/21℃
2.4 bar/90℃
Max. Reverse Differential Pressure 2bar/21℃
Steam Sterilization 121℃/30min, max 0.3bar
Filtration Area 0.6~0.7 m2/10"
Biological Safety Dissolved matter<30mg per 10"
Endotoxin level<0.25EU/ml
Applications
  • Liquid sterilizing filtration
  • Aseptic raw material filtration
  • Sterilization filtration for ophthalmic formulations
  • Filtration of vaccines, plasma, and serums
  • Chinese medicine injection filtration
