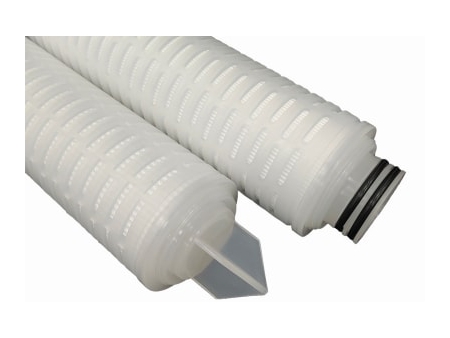

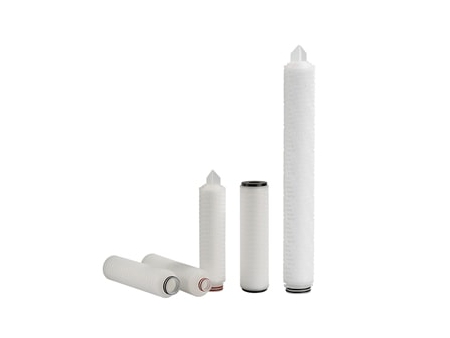

PTFE Membrane Filter Cartridge with Corrosion Resistant PVDF Structure, PVDF Series

PTFE Membrane Filter Cartridge with Corrosion Resistant PVDF Structure, PVDF Series
PTFE Membrane Filter Cartridge with Corrosion Resistant PVDF Structure, PVDF Series
PTFE Membrane Filter Cartridge with Corrosion Resistant PVDF Structure, PVDF Series
Request a Quote

Our PTFE membrane filter cartridges feature a corrosion-resistant PVDF structure. The full-fluoropolymer filter layer is composed of polytetrafluoroethylene (PTFE)/hydrophilic PTFE membrane, while the housing, center rod, and end caps are meticulously crafted from PVDF material. This structure ensures superior resistance to chemical corrosion, enabling the efficient and extended filtration of highly corrosive chemicals like acids, alkalis, and organic solvents.

Materials of Construction
Filter Medium PTFE Membrane
Drainage ECTFE
Center Rod/Housing/End Cap PVDF
Specifications
Length 10", 20"
Micron Rating 0.1~5.0μm
Max. Operating Temperature 100℃
Max. Differential Pressure 4.0 bar / 21℃
2.4bar / 80℃
Filtration Area 0.6~0.7 m2/10"
Biological Safety Dissolved matter<30mg per 10"
Endotoxin level<0.25EU/ml
Chemical Compatibility
Category Medium Concentration (%) PVDF
20℃ 60℃ 90℃
Acid HCl H2SO4 HNO3 H3PO4 HF 37
96
>97
65
86
40


~



0
~




~


Alkali Ammonia NaOH Amine ~
PH<12
PH12
~
0

~
0
~

~
0
~

~
~
Salt General Chloride
0

0

~
Solvent Aromatic Compounds Aliphatic Compounds Ketones, Esters Alcohols Chlorinated Solvents Dimethyl/Acyl Amide

0


~
0

~
0
0
~
0

~
0
0
~
Halogens/Gases Fluorine Chlorine Bromine Ozone ~
0

0
~
0

~
~
0

~
Others Hydraulic Oil Mineral Oil Alkali Metals

~


~


~

Note: " " indicates resistant, "0" indicates conditionally resistant, and "~" indicates not recommended.

Applications
  • Filtration of chemical raw materials
  • Filtration of highly corrosive acids
  • Filtration of organic solvents
  • High-temperature gas filtration (above 100℃)
