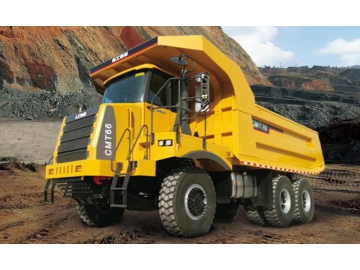

CMT66 Rigid Dump Truck

Request a Quote

View All: http://ytocorp.com/

Overviews
The CMT66 heavy-duty dump truck is an open air mining transport designed specifically for moving rocks under harsh mining conditions and harsh climates. Because the truck is equipped with a 280kW high-powered engine, it has a maximum load of 45 tons and a top speed of 44 km/h.

Technical Parameters

Model CMT66
Gross weight 25,000 kg
Max. payload (nominal payload) 45t
Engine WEICHAI WP12G380E310
Engine power 280kW
Displacement 12L
Transmission FAST 7DS200K
Max. torque 2000Nm
Speed range 7 speeds forward and 1 reverse
Engine speed 2600rpm
Axles load 13T+25T+25T
Tyres 14.00-25-36PR
Max.travel speed 40km/h
Dump body capacity (struck) 26m³
Overall dimension (length × width × height) 8750×3450×4120 mm

Features

The CMT66 heavy duty dump truck is driven by 6 wheels and has a payload of 45t. It is designed for mining, construction, quarrying, and other heavy duty applications.
The truck's front and rear suspensions are equipped with multi-stage damping, which extends the leaf spring service life.
This heavy duty dump truck uses fully hydraulic steering for greater comfort than mechanical steering.
The truck's braking effect is complemented by an all-wheel dry caliper disc brake, in-cylinder brake and exhaust brake. The synergy of these brakes allows for effective braking to ensure safer driving.
