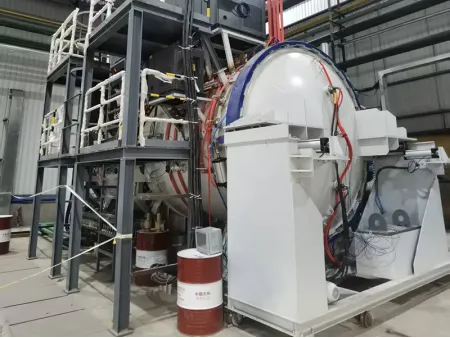

Vacuum Annealing Furnace
Vacuum Heat Treatment Furnace
Annealing is a critical metal heat treatment process that involves slowly heating the metal to a specific temperature, maintaining it for a designated period, and then cooling it at a controlled rate. This process aims to:
- Reduce hardness, improving machinability and cutting performance
- Relieve residual stress, stabilizing dimensions and minimizing the risk of deformation and cracking
- Refine Grain Structure: enhancing material uniformity and eliminating structural defects
Our vacuum annealing furnace is designed for precise annealing processes under vacuum or inert gas protection, ensuring high-quality surface finishes and enhanced material properties.
Horizontal Single Chamber Vacuum Annealing Furnace
| Model | |||||
| Effective internal dimensions (mm) | 1600×600×600 | 2000×700×700 | 2500×800×800 | 3000×1100×1100 | 4000×1400×1400 |
| Max. load capacity (kg) | 800 | 1200 | 1500 | 3000 | 5000 |
| Heating power (kW) | 190/270 | 300/400 | 440/600 | 800/1000 | 1400/1800 |
| Max. temperature (℃) | 1200 | 1200 | 1200 | 1200 | 1200 |
| Ultimate vacuum level (Pa) | 4×10⁻³/4×10⁻⁴ | 4×10⁻³/4×10⁻⁴ | 4×10⁻³/4×10⁻⁴ | 4×10⁻³/4×10⁻⁴ | 4×10⁻³/4×10⁻⁴ |
| Temperature uniformity (℃) | ±5 | ±5 | ±5 | ±5 | ±5 |
| Max. cooling gas pressure (bar) | 1.99 | 1.99 | 1.99 | 1.99 | 1.99 |
| Pressure rise rate (Pa/h) | 0.5/0.27 | 0.5/0.27 | 0.5/0.27 | 0.5/0.27 | 0.5/0.27 |
The above specifications are for the standard horizontal single-chamber vacuum annealing furnace. We offer customized, non-standard designs and manufacturing to meet specific customer requirements. For specialized applications, our furnaces can achieve an ultimate vacuum level of 10⁻⁴ Pa or higher, with a pressure rise rate better than 0.1 Pa/h.
Vertical Single Chamber Vacuum Annealing Furnace
| Model | |||||
| Effective internal dimensions (mm) | 800×1600 | 1000×2000 | 1200×2500 | 1600×3000 | 2000×4000 |
| Max. load capacity (kg) | 800 | 1200 | 1500 | 3000 | 5000 |
| Heating power (kW) | 180/260 | 300/400 | 440/600 | 800/1000 | 1400/1800 |
| Max. temperature (℃) | 1200 | 1200 | 1200 | 1200 | 1200 |
| Ultimate vacuum level (Pa) | 4×10⁻³/4×10⁻⁴ | 4×10⁻³/4×10⁻⁴ | 4×10⁻³/4×10⁻⁴ | 4×10⁻³/4×10⁻⁴ | 4×10⁻³/4×10⁻⁴ |
| Temperature uniformity (℃) | ±5 | ±5 | ±5 | ±5 | ±5 |
| Max. cooling gas pressure (bar) | 1.99 | 1.99 | 1.99 | 1.99 | 1.99 |
| Pressure rise rate (Pa/h) | 0.5/0.27 | 0.5/0.27 | 0.5/0.27 | 0.5/0.27 | 0.5/0.27 |
The above specifications are for the standard vertical single-chamber vacuum annealing furnace. We offer customized, non-standard designs and manufacturing to meet specific customer requirements. For specialized applications, our furnaces can achieve an ultimate vacuum level of 10⁻⁴ Pa or higher, with a pressure rise rate better than 0.1 Pa/h.
The vacuum annealing furnace operates under vacuum or inert gas protection, effectively preventing surface oxidation and rusting during the annealing process. This ensures higher processing quality, consistent material properties, and long-lasting durability for treated components.
