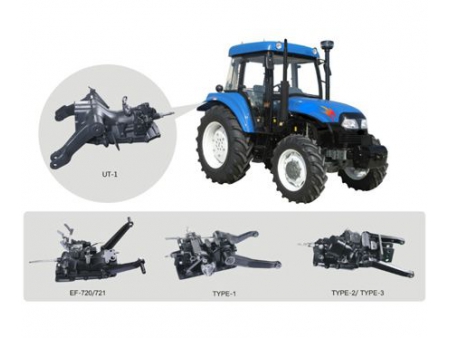

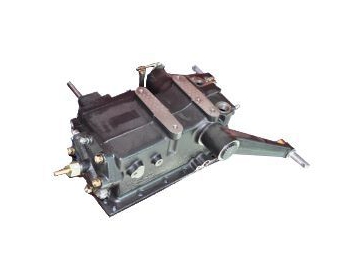

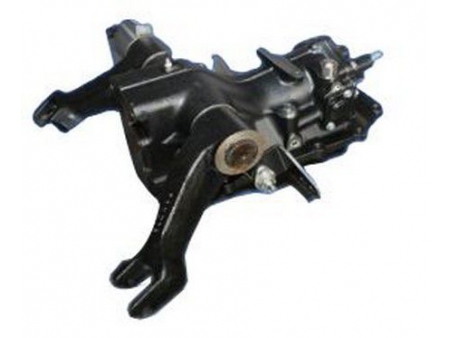

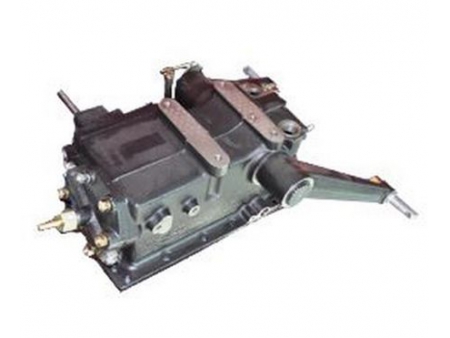

Hydraulic lift in tractor is connected to the hydraulic lift arms through three-point linkage. It consists of a housing attached to the differential case, lifting arms, main shaft, crank arm, connecting rod, cylinder, piston and control valve.

Technical Parameters
Type Horse Power Lift Angle Relief pressure Working Flow Lift Type
EF-720 25 -5.5º~ 60º 15.2 0.5 MPa 22 L/min Rear 3 linkage
EF-721 25 -5.5º~ 60º 15.2 0.5 MPa 22 L/min
TYPE-1 22-25 -17º~ 49º 15.2 0.5 MPa 24 L/min
TYPE-2 28-36 -16º~ 47º 15.2 0.5 MPa 30 L/min
TYPE-3 28-36 -6.6º~ 57º 15.2 0.5 MPa 19 L/min
LC-001 30 -9º~ 57º 20±0.5 MPa 31 L/min
LC-004 40-45 -24º~ 50º 20±0.5 MPa 31 L/min
UT-1 75 -32º~ 45º 15 0.5 MPa 32 L/min
