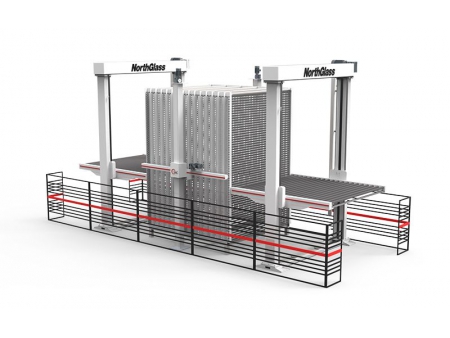

Multi-Level Buffer System with Lift
Request a Quote
Designed for maximizing space efficiency, seamless integration with tempering processes, and optimizing your glass storage and handling
The multi-level buffer system with lift is composed of lifting conveyors, sorter lifting systems, and a control system. This system stores glass horizontally in grid layers that can extend up to 9 meters in height, significantly reducing the equipment's footprint. It serves as a buffer before tempering and can be integrated with an automatic batching system for efficient and precise loading of glass into the tempering furnace.
Specifications
- Max. glass size: 3500×2500mm/5000×3000mm
- Min. glass size: 800×600mm
- Glass thickness: 3-19mm
- Storage layers: 50 layers or 70 layers per unit (customizable)
- Transfer speed: 6-40m/min
- Lifting speed: 2.2m/s
- Circle time: 20-35s
