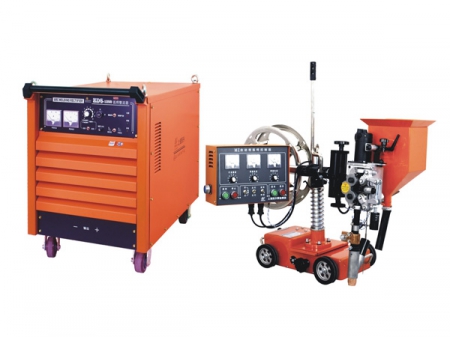

Transformer Based Submerged Arc Welder
Request a Quote
The MZ series transformer based submerged arc welder supplied by Donsun is able to weld a variety of beveled butt weld, lap weld, fillet weld, and more. It is an ideal choice for customers to deal with butt weld or fillet weld on a horizontal plane or an inclination of 10 degrees.
MZ-1000
| Model | |
| Power Voltage/Frequency | 380V/50HZ |
| Phase Number | 3 |
| Rated Input Capacity | 86KVA |
| Open Circuit Voltage | 76V |
| Welding Current | 200~1000A |
| Rated Duty Cycle | 60% |
| Wire Diameter | 3~5mm |
| Tractor Weight | 60kg |
| Head Lateral Bevel Angle | 30° |
| Vertical Adjust Range | 85mm |
| Horizontal Adjust Range | 60mm |
| Vertical Rotary Angle | 土 180 ° |
| Weight | 340kg |
| Dimensions | 1140×590×920 (mm) |
MZ-1250
| Model | |
| Power Voltage/Frequency | 380V/50HZ |
| Phase Number | 3 |
| Rated Input Capacity | 99KVA |
| Open Circuit Voltage | 76V |
| Welding Current | 250~1250A |
| Rated Duty Cycle | 60% |
| Wire Diameter | 3~6mm |
| Tractor Weight | 65kg |
| Head Lateral Bevel Angle | 30° |
| Vertical Adjust Range | 85mm |
| Horizontal Adjust Range | 60mm |
| Vertical Rotary Angle | 土 180 ° |
| Weight | 370kg |
| Dimensions | 1140×590×920 (mm) |
Features
- The DC submerged arc automatic welder adopts varying-speed wire feeding form of feedback of supply voltage. High sensitivity and fast response allow the electronic control circuit to make arc extremely stable.
- The submerged arc welding machine can automatically realize scraping arc in accordance with the contact situation of workpieces and arc-striking wires. Also, it allows arc to be quenched automatically on basis of arc length. Therefore, the striking of arc in welding process can guarantee welding quality and simplify operation. Also, it can reduce labor strength.
- A wire-feed trolley is dragged by a DC motor. It adopts a thyristor for stepless speed regulation. Other advantages include extremely convenient speed adjustment and high reliability.
- The transformer based submerged arc welder adopts high-power thyristor to achieve automatic welding under flux layer.
- The automatic welding equipment can realize multiple welding manners such as the ring welding, fillet welding, butt welding, and the lap welding, etc.
