Automatic Cable Coil Strapping and Shrink Wrapping Machine

Request a Quote

View All: http://wirecable-solution.com/3-1-automatic-cable-coil-strapping-and-shrink-wrapping-machine.html

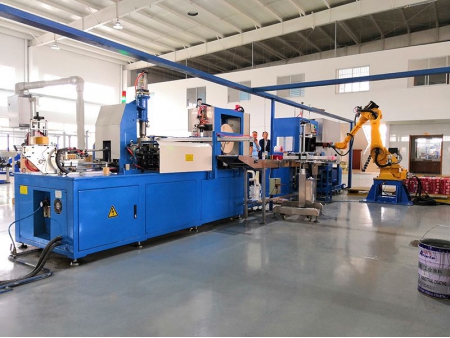

Cable packaging line for cable coiling, strapping and heat shrink wrapping

Elevate your cable packaging process with our Automatic Cable Coil Strapping and Shrink Wrapping Machine.

Choose our automatic cable coil strapping and shrink wrapping machine for reliable and efficient cable packaging. Whether used as a standalone unit or connected to an extrusion production line, our shrink wrapping machine ensures the cable coils remain secure and facilitates seamless post-coiling processes.

Features

Secure Strapping: Our shrink wrapping machine offers options for single-point, two-point, and four-point fixation methods, ensuring the cable coils are securely fastened.

User-Friendly Controls: The shrink wrapping machine is equipped with a PLC and touchscreen control system, making operation simple and convenient.

Flat Cable System: Utilizing a servo motor-driven flat cable system, the shrink wrapping machine creates neatly wound cable coils for a visually appealing finish.

Efficient Memory Function: The built-in memory can store up to 99 different cable coil specifications. When changing product specifications, simply retrieve the stored data, eliminating the need for repetitive input and enabling immediate production.

Adjustable Tension: The bundling tightening tension can be adjusted based on the product's characteristics.

Error Detection: The shrink wrapping machine is equipped with automatic error detection, alerting operators in case of any issues.

Specifications

Model	GA240	GC240	GC600
Applicable wire section	1.5 - 6.0 mm²	1.5 - 6.0 mm²	6.0 - 35.0 mm²
Production speed	400 m/min	200 m/min	200 m/min
Outer diameter of coils	Ø100 - 300 mm	Ø100 - 300 mm	Ø400 - 600 mm
Inner diameter of coils	Ø180 - 250 mm	Ø180 - 250 mm	Ø180 - 250 mm
Height of coils	50 - 100 mm	50 - 100 mm	100 - 180 mm
Material of strips	PP
Packing method	Hollow heat shrinking
Automatic stacking and palletizing system	Optional	Optional	Optional
