Contour Cutting CNC Router with Oscillating Knife

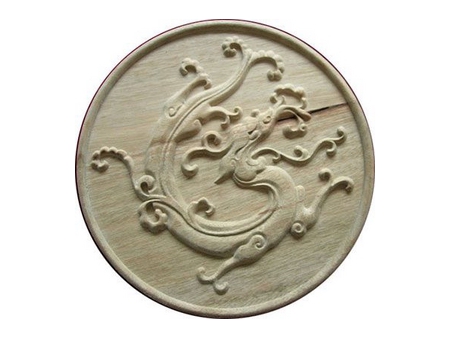

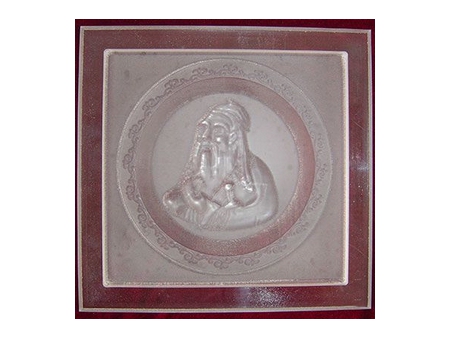

This contour cutting CNC router is equipped with oscillating knife for precise cutting with high dimensional accuracy. The CNC routing machine adopts one-key switch control system, enabling it suited to perform contour cutting, plane engraving, 3D relief engraving of wood, acrylic, PVC, foam board (KT board) and more medium hard materials. CCD visual positioning system is equipped with 2 megapixel Japanese industrial camera, providing strong anti-interference ability, fast image recognition speed and high working efficiency.

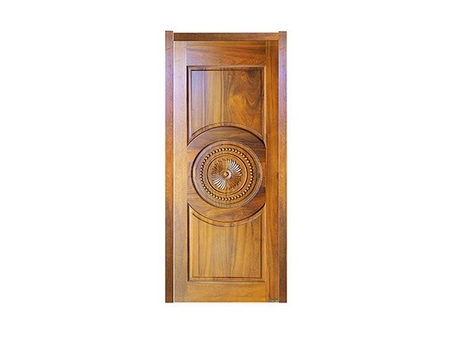

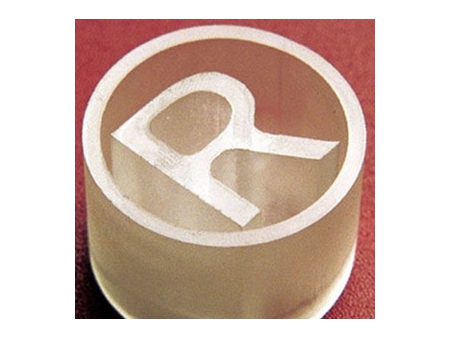

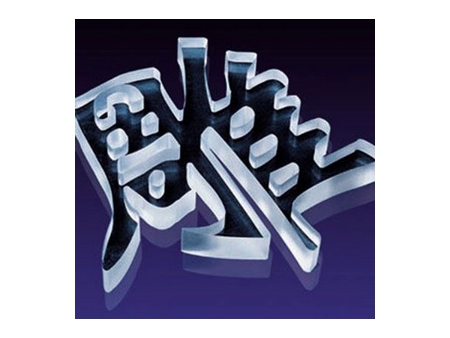

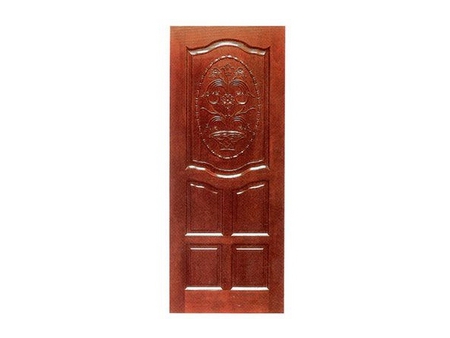

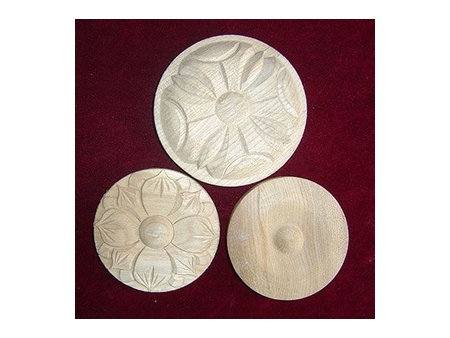

This contour cutting CNC router is suitable for processing various wooden products, advertising signs, acrylic letters, etc. It is applicable to a number of materials, such as steel, brass, aluminum, plastic, acrylic, wood, and other metal or non-metal materials.
Model | |
Working area (mm) | 1300x2500mm |
Z-axis travel height | 180mm |
Max. engraving speed | 12000mm/min |
Working accuracy | ±0.08/300mm |
Spindle power | 3kW/ |
Spindle speed | 6000—24000rpm |
Tool diameter | Ø3.175mm, Ø6mm, Ø12.7mm |
X/Y/Z guide rails | Linear guide rails |
Transmission | X/Y axis rack and pinion, Z axis ball screw |
Voltage | AC380V/50HZ |
Dust collector | 3kW |
Vacuum power | 5.5kW |
File format | DST, PLT, BMP, DXF, AI, DWG |
Command code | G code |
Software | NcStudio, Tro CCD Cut |
-
DSP control system
DSP hand controller makes operation easier and more simple. It uses handle to manually control the motion of CNC router, eliminating the need for an additional computer thereby decreasing the required footprint.
-
CCD system
CCD visual positioning system is equipped with 2 megapixel Japanese industrial camera, providing strong anti-interference ability, fast image recognition speed and high working efficiency.
-
Linear guide rail
Square linear guides from world's renowned brand are used to ensure high precision, large loading capacity and long service life.
-
Servo motor
Japanese Yaskawa servo motor delivers fast running speed, low noise level and high position accuracy.
-
Rack and pinion transmission
The rack and pinion transmission guarantees high speed and high precision.
-
Oscillating knife cutting module
The oscillating knife cutting module is offered as an addition to the CNC router, ideal for cutting corrugated cardboard, carbon fiber plate, fiberglass board, foam board, and other flexible materials.
-
T-slot and vacuum table
The vacuum bed is built using world's advanced technology and configured with powerful vacuum pump, stably accommodating various workpieces of different sizes.
