Double-Sided Tape with PET Substrate, MZ-HT9705
High temperature resistant tape

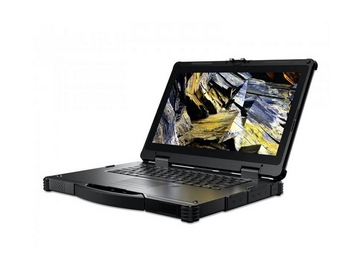

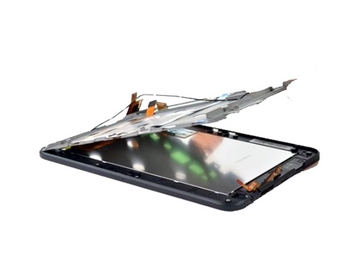

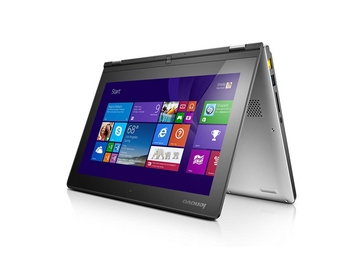

MZ-HT9705 double-sided tape with pet substrate offers good heat resistance and long-term adhesion stability, no hard-to-clean adhesive residue when applied on FPC. Suitable for FPC, ABS plastic part, metal frame, etc. binding of laptop computer, tablet computer, mobile phone, etc.
1240mm*50mm/PCS, packaging dimensions L1340mm*W150mm*T150mm.
Product Structure90g printed silicone paper
18u high-temperature-resistant adhesive
12u PET substrate
20u high-temperature-resistant adhesive
Property | Unit | Value | Testing method |
Substrate thickness | mm | 0.012 ±0.002 | GB/T 7125-1999 |
Total thickness | mm | 0.05 ±0.003 | GB/T 7125-1999 |
Initial adhesion | Steel ball size# | 2-6 | GB/T 4852-2002 |
180° peel strength | N/25mm | 13-22 | GB/T 2792-1998 |
180° Peel strength (after in high-temperature environment) | N/25mm | ≥13 | GB/T 2792-1998 |
Adhesion durability | H | ≥72 | GB/T 4851-1998 |
Heat resistance | ℃ ∕ 10min | -10~260 | -- |
High-temperature performance test | 260℃/10min | < 15% deformantion | GB/T 2792-1998 |
Adhesive color (after in high-temperature environment) | —— | Light yellow | Visual |
