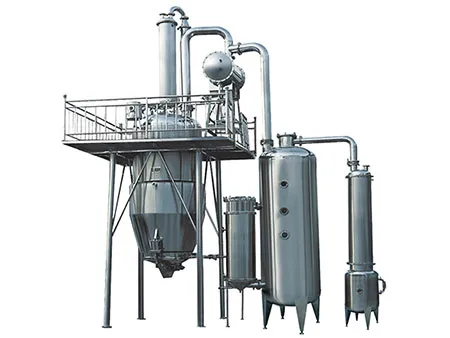

Forced Circulation Evaporator
Request a Quote
- The forced circulation evaporator features enlarged heating surface and high concentration efficiency. Constructed with stainless steel, smooth inner wall of the tanks ensures easy clean.
- The extraction and concentration can be performed at low temperature in the same enclosed tank, allowing for 8% increase in extraction rate, high effective composition, and minimal loss.
- A large condensation area is beneficial to condensation and recovery of solvent, ensuring low solvent loss and a recovery rate of more than 95%.
- Maximizing the use of residual heat greatly reduces repeated heating and cooling, lowering energy consumption.
- Compact structure, small floor area occupied, few operators needed, low production cost
- Fully enclosed production reduces pollution to the environment, meeting the GMP requirements.
Technical parameters
| Model and specification | |||||
| Volume(L) | 500 | 1000 | 2000 | 3500 | 6000 |
| Raw material capacity(Kg) | 100-200 | 200-400 | 300-700 | 500-1000 | 900-2000 |
| Time (h) | 3-6 | 4-6 | 5-7 | 5-8 | 7-9 |
| Concentration | 1.2-1.35 | 1.2-1.35 | 1.2-1.35 | 1.2-1.35 | 1.2-1.35 |
| Dimension | 2.5×1.5×5.0 | 3.0×2.0×6.0 | 3.0×2.0×8.0 | 4.0×2.8×9.5 | 4.5×3.5×10.0 |
