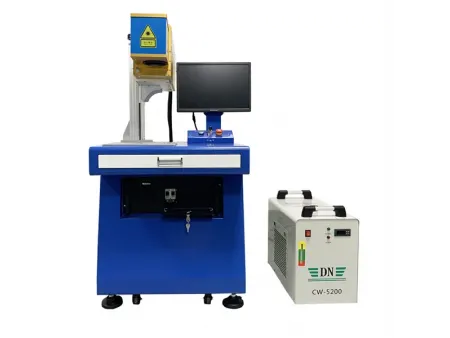

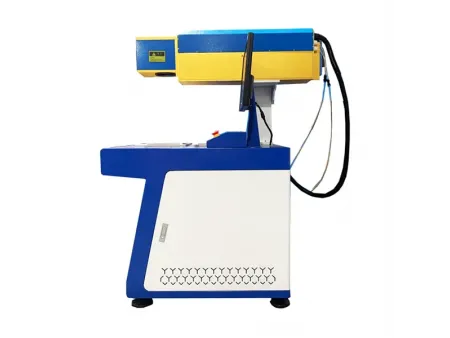

3-Axis CO₂ Laser Marker
- Laser Power: 60W
- Laser Wavelength: 10.64μm
- Engraving Line Speed: ≤5000mm/s
- Repeat Precision: ±0.01mm
CO2 laser markers take high quality metal laser tube as the laser source. By 3D fast-speed scanning mirrors swinging as the scheduled angles under the controlling of the computer, the laser focus on the surface of the work piece by focus lens to form images and realize marking and graph processing.
| Model | |
| Laser Power | 60W |
| The Lasers Marker | CO2 Metal Laser Tube |
| Laser Wavelength | 10.64μm |
| Engraving Line Speed | ≤5000mm/s |
| Repeat Precision | ±0.01mm |
| Minimum Line Width | 0.1mm |
| Minimum Character | 0.4mm |
| Marking The Maximum Height | 300mm |
| Power Supply | 220V/50Hz or 110V/60Hz |
| Engraving Depth | ≤2mm/ ≤3mm/ ≤5mm/ ≤8mm |
| Cooling System | Bullt-in air cooling sysem&Water cooling |
| Instructions | Users manuel and Video instruction |
| Power Consumption | 500W/1000w |
| Repeat Frequency | 20-100KHz |
| Standard Engraving Range | Wothin 300*300mm |
CO2 RF Tube Laser Marker Engraver Applicable Materials. CO2 RF tube Laser Marker Engraver is suitable for the majority of nonmetal materials such as leather, cloth, wood, bamboo, paper, organic materials, plastic, epoxy resin etc.
CO2 RF Tube Laser Marker Engraver Applicable Industry. The 30W CO₂ Laser Marker Engraver is suitable for electronic components, medicines, food, drinking package, leather products, rag trade, woodworks, craftworks and package.
