Three Axis CNC Routers-Nesting
Request a Quote

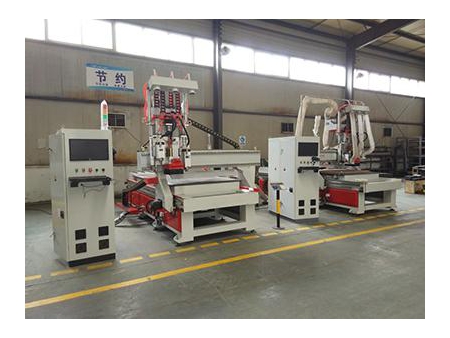

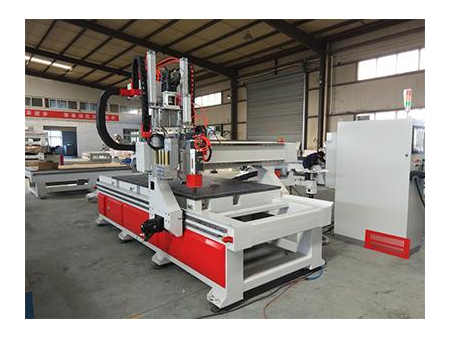

This nesting CNC router comes equipped with an automatic loading and unloading system that enhances its productivity. The 3 axis CNC machine was developed for manufacturing nested based custom cabinets, furniture, and related products.
Materials Cut
Board, fiberboard, particle board, plywood, plastic plate, insulation board, composite board, etc.
Applications

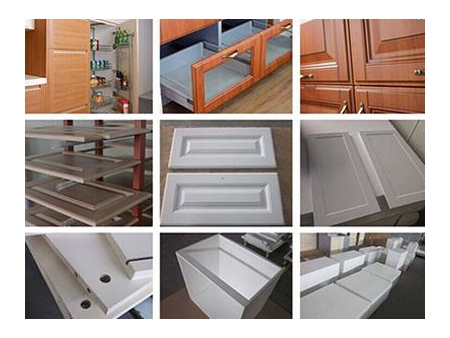

- Woodworking industry: door, furniture, loudspeaker boxes, etc.
- Composite materials industry: plastic parts, FRP parts, rubber products, composite material parts, etc.
Features

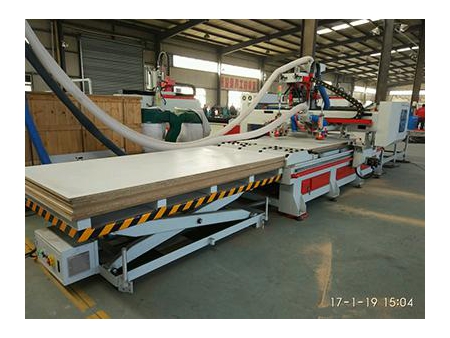

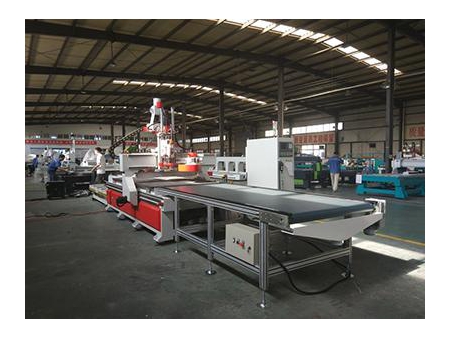

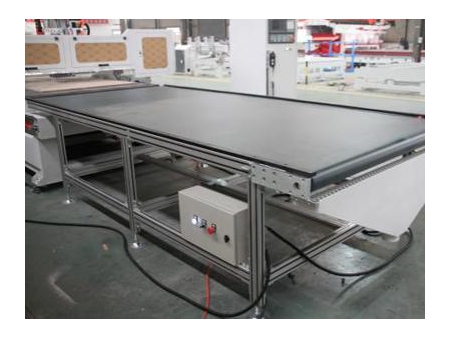

- The nesting CNC router supports automatic loading and unloading as well as automatic positioning, ensuring high productivity and minimizing the risk for human error.
- The heavy-duty machine body ensures stability during processing.

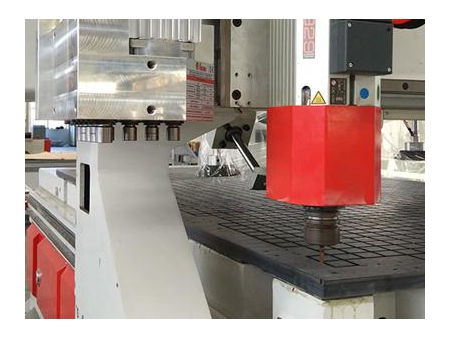

- The speed of the 9KW spindle can reach up to 24000 RPM. The 8-position tool changer ensures quick tool changing, minimizing downtime.

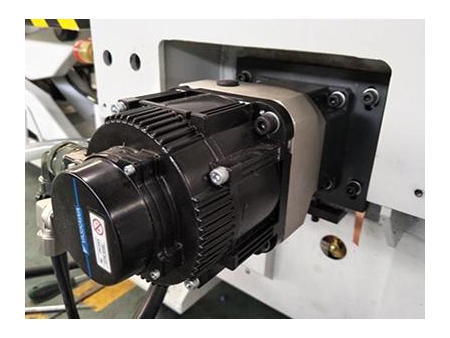

- It is equipped with a servo motor made in Taiwan and reducer made by Shimpo to ensure optimal processing speed and processing accuracy.

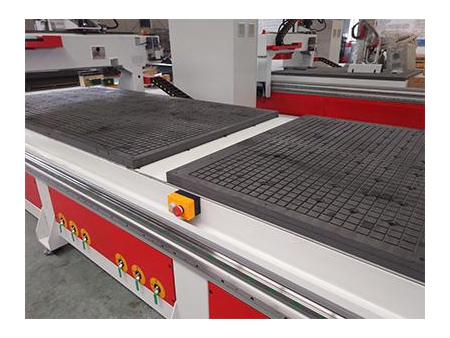

- The double-layer vacuum table can effectively suck materials of various sizes.

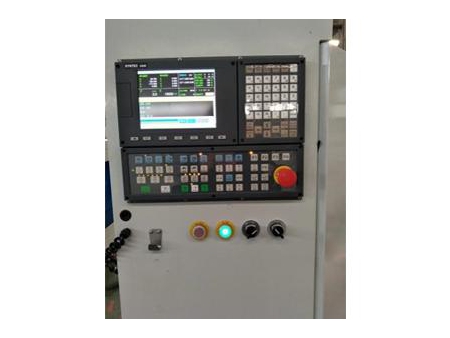

- A Syntec intelligent control system is easy to operate, meaning workers can master its functions after simple training, eliminating the need for hiring specialized workers.

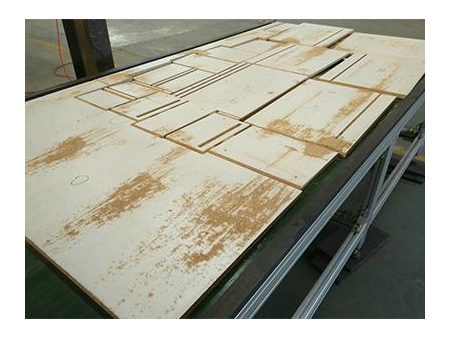

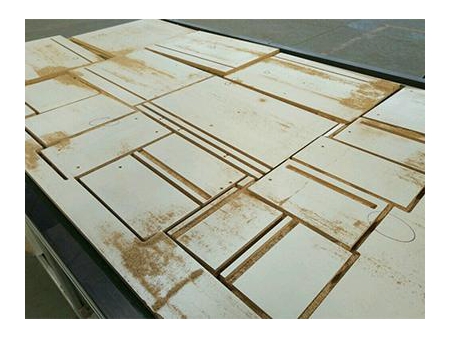

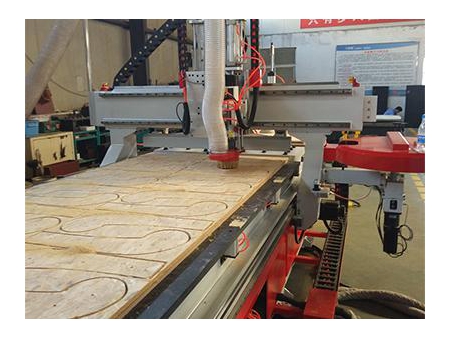

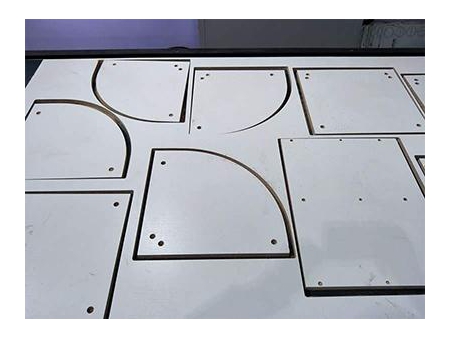

- CAD/CAM software supports typesetting optimization. The advanced equipment can even process irregular workpieces. The utilization of materials is more than 95% which helps you effectively lower production costs while increasing output.
Parameters
| Series | F1-AT1325AD | AT1224AD |
| Stroke | 2500*1300*250mm | 2440*1220*250mm |
| Idle speed | ≥60000mm/min | ≥60000mm/min |
| Processing speed | ≥30000mm/min | ≥30000mm/min |
| Spindle power | 9KW | 9KW |
| Spindle speed | 24000r/min | 24000r/min |
| File format | G-code | G-code |
| Working voltage | 380V/220V 3ph （Customizable） | 380V/220V 3ph （Customizable） |
| Operating system | Taiwan Syntec control system | Taiwan Syntec control system |
| Package dimensions | 2280x12000x2100mm | 2280x12000x2100mm |
| Shipping weight | 3000 KGS | 3000 KGS |
Options
- Vacuum pump
- Vacuum cleaner
- Saw blade
