Mixed water ceramic valve core automatic assembly + vacuum inspection line
Request a Quote
Application

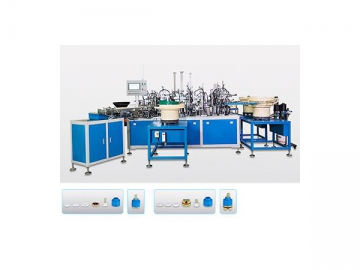

Composed of three machines in the following, our automated production machinery is designed for automated assembly and leak testing of mixer tap valve.
Details
Specifications
- Measurement Range: <1MPa
- Measurement Resolution: 0.001MPa
- Measurement Tolerance: 0.004MPa (slight difference between varying workpieces)
- Power: 1-2KW

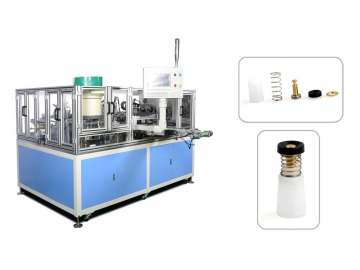

- Assembly Machine Features
- Fully automatic or semi-automatic feeding method are both used in one machine
- Various items can be assembled
- Automatic oil filling, oil evening function
- Control the amount of oil filling, minimize the loss of consumables and reduce the product defect rate
- Automatic sorting direction controlled by a visual system for irregularly shaped samples
- Viscous products are automatically dispensed to prevent mixing
- Reduce labor costs while increasing production capacity and qualification rate

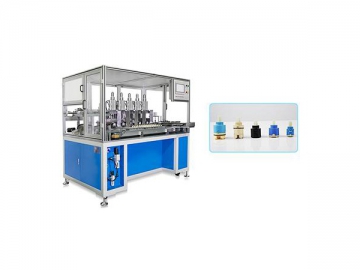

- Vacuum Testing Machine Features
- Can be used as a single machine or connected to an assembly machine to form a production line.
- Every process has uniform oil function
- 5 products can be tested simultaneously
- Pressure is applied for 8 seconds during each process
- Automatic and repeated hot and cold water direction opening and closing test method, this ensures vacuum detection is more reliable
- The automatic product shell vacuum test method can detect the quality of the inside of ceramic pieces to ensure that the product qualification rate exceeds 99.8%.
Please contact us for more details and video information.
