DG Series Digital Flatbed Cutter (Applied for Sign, Advertising and Packaging Industry)

DG Series Digital Flatbed Cutter (Applied for Sign, Advertising and Packaging Industry)
DG Series Digital Flatbed Cutter (Applied for Sign, Advertising and Packaging Industry)
DG Series Digital Flatbed Cutter (Applied for Sign, Advertising and Packaging Industry)
DG Series Digital Flatbed Cutter (Applied for Sign, Advertising and Packaging Industry)
DG Series Digital Flatbed Cutter (Applied for Sign, Advertising and Packaging Industry)
DG Series Digital Flatbed Cutter (Applied for Sign, Advertising and Packaging Industry)
DG Series Digital Flatbed Cutter (Applied for Sign, Advertising and Packaging Industry)
DG Series Digital Flatbed Cutter (Applied for Sign, Advertising and Packaging Industry)
DG Series Digital Flatbed Cutter (Applied for Sign, Advertising and Packaging Industry)
DG Series Digital Flatbed Cutter (Applied for Sign, Advertising and Packaging Industry)
DG Series Digital Flatbed Cutter (Applied for Sign, Advertising and Packaging Industry)
DG Series Digital Flatbed Cutter (Applied for Sign, Advertising and Packaging Industry)
Request a Quote
  • Acrylic
  • Aluminum Composite
  • POP Display Recycle Board
  • PVC Sheet Forex
  • Gasket Materials
  • Textiles Banners Fabric

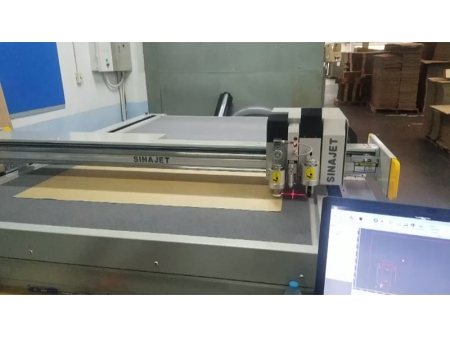

  • 3-Layer Corrugated Sheet Cutting

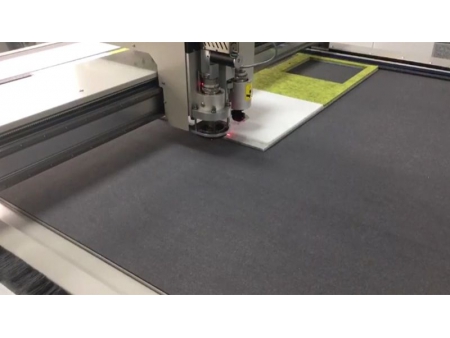

  • Felt Panel Cutting

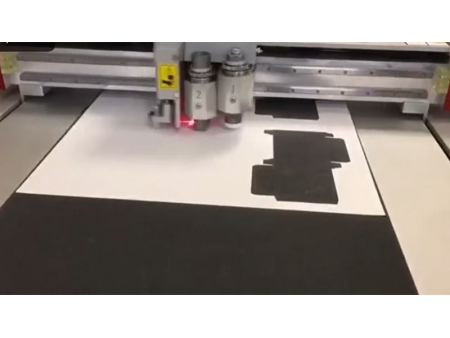

  • Paper Box Cutting
  • 1cm Acrylic Cutting

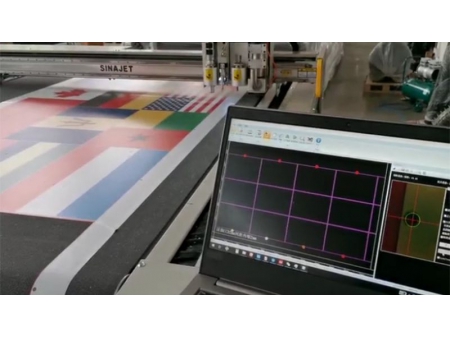

  • Banner Material Cutting
  • PP Paper Cutting
  • Card Paper Cutting
  • Aluminum Composite Panel Cutting
  • KT Board Cutting

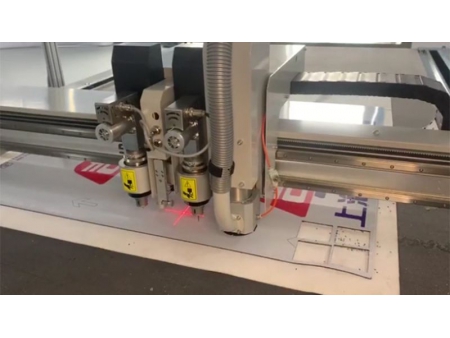

  • Modular combination of cutting knives:

    high speed rotary knife, high speed oscillating knife, CNC router, creasing wheel tool, V-cutting tool, kiss cutting tool, drag knife, etc., suitable for cutting various types of flexible materials such as PP paper, self-adhesive sticker, car decal, and rigid materials such as PVC board, foam board, expanded PVC, acrylic sheet, corrugated cardboard, honeycomb board;
  • Anti-collision device infrared light curtain:

    protecting operator from being injured;

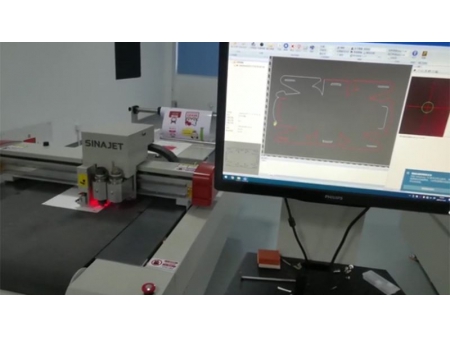

  • Advanced software:

    independently developed by Sinajet, providing users with intelligent operation experience while fulfilling their various cutting demands;
  • Exclusive material hold-down technology:

    low noise level and reduced energy consumption;
Options

There are six models available to meet different needs. Those models vary from the cutting area (L*W). Customized machine model can be offered upon request.

DG1513 : 1500*1300mm

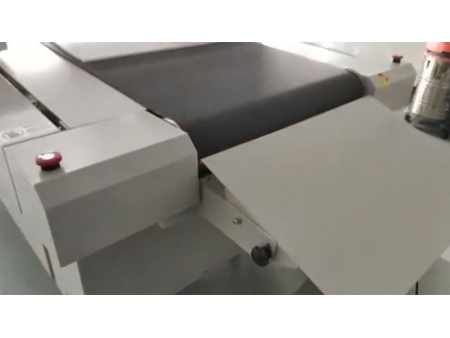

  • Working table: fixed table and conveyor table are optional
  • Repeatability: ≤0.1mm
  • Max. cutting thickness: 50mm
  • Max. cutting speed: 1500mm/s
  • Cutting tools: rotary knife, creasing wheel tool, kiss cutting tool, V-cutting tool, oscillating knife, drag knife, etc. are optional
  • Material hold-down: vacuum clamping
  • File format: DXF/ HPGL/ CUT/ GBR/ PLT/ ISO/ PDF
  • Interface: network interface
  • Voltage: 220V/380V/50-60HZ
  • Drive system: imported intelligent digital servo drive
  • Pump power: 2.2-9.0KW
  • Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)
DG2513 : 2500*1300mm
  • Working table: fixed table and conveyor table are optional
  • Repeatability: ≤0.1mm
  • Max. cutting thickness: 50mm
  • Max. cutting speed: 1500mm/s
  • Cutting tools: rotary knife, creasing wheel tool, kiss cutting tool, V-cutting tool, oscillating knife, drag knife, etc. are optional
  • Material hold-down: vacuum clamping
  • File format: DXF/ HPGL/ CUT/ GBR/ PLT/ ISO/ PDF
  • Interface: network interface
  • Voltage: 220V/380V/50-60HZ
  • Drive system: imported intelligent digital servo drive
  • Pump power: 2.2-9.0KW
  • Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)
DG2516 : 2500*1600mm
  • Working table: fixed table and conveyor table are optional
  • Repeatability: ≤0.1mm
  • Max. cutting thickness: 50mm
  • Max. cutting speed: 1500mm/s
  • Cutting tools: rotary knife, creasing wheel tool, kiss cutting tool, V-cutting tool, oscillating knife, drag knife, etc. are optional
  • Material hold-down: vacuum clamping
  • File format: DXF/ HPGL/ CUT/ GBR/ PLT/ ISO/ PDF
  • Interface: network interface
  • Voltage: 220V/380V/50-60HZ
  • Drive system: imported intelligent digital servo drive
  • Pump power: 2.2-9.0KW
  • Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)
DG2521 : 2500*2100mm
  • Working table: fixed table and conveyor table are optional
  • Repeatability: ≤0.1mm
  • Max. cutting thickness: 50mm
  • Max. cutting speed: 1500mm/s
  • Cutting tools: rotary knife, creasing wheel tool, kiss cutting tool, V-cutting tool, oscillating knife, drag knife, etc. are optional
  • Material hold-down: vacuum clamping
  • File format: DXF/ HPGL/ CUT/ GBR/ PLT/ ISO/ PDF
  • Interface: network interface
  • Voltage: 220V/380V/50-60HZ
  • Drive system: imported intelligent digital servo drive
  • Pump power: 2.2-9.0KW
  • Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)
DG3321 : 3300*2100mm
  • Working table: fixed table and conveyor table are optional
  • Repeatability: ≤0.1mm
  • Max. cutting thickness: 50mm
  • Max. cutting speed: 1500mm/s
  • Cutting tools: rotary knife, creasing wheel tool, kiss cutting tool, V-cutting tool, oscillating knife, drag knife, etc. are optional
  • Material hold-down: vacuum clamping
  • File format: DXF/ HPGL/ CUT/ GBR/ PLT/ ISO/ PDF
  • Interface: network interface
  • Voltage: 220V/380V/50-60HZ
  • Drive system: imported intelligent digital servo drive
  • Pump power: 2.2-9.0KW
  • Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)
DG4032 : 4000*3200mm
  • Working table: fixed table and conveyor table are optional
  • Repeatability: ≤0.1mm
  • Max. cutting thickness: 50mm
  • Max. cutting speed: 1500mm/s
  • Cutting tools: rotary knife, creasing wheel tool, kiss cutting tool, V-cutting tool, oscillating knife, drag knife, etc. are optional
  • Material hold-down: vacuum clamping
  • File format: DXF/ HPGL/ CUT/ GBR/ PLT/ ISO/ PDF
  • Interface: network interface
  • Voltage: 220V/380V/50-60HZ
  • Drive system: imported intelligent digital servo drive
  • Pump power: 2.2-9.0KW
  • Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)
