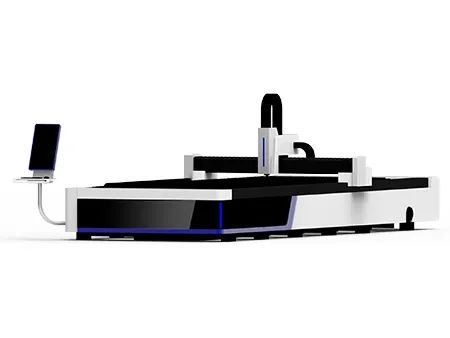

Flatbed Fiber Laser Cutting Machine, BFS Series
Request a Quote
Applicable Materials
This series of laser cutting machines is designed for various industrial applications, including sheet metal processing, automotive manufacturing, commercial appliances and equipment, agricultural machinery, household appliances, equipment cabinets, elevators and escalators, hospital and library equipment, HVAC systems, industrial machinery, industrial vehicles, lighting fixtures, and steel furniture and panels.
Features
- It operates on a single platform, providing excellent accessibility and making the loading process more convenient and efficient.
- Designed with user-friendly ergonomics and features a precision dual-drive system that enhances operational smoothness and stability, ensuring consistent performance.
Main Parameters
- Laser power: 2000W-20kW
- Operating voltage: 380V/50Hz, 380V/60Hz, 220V/50Hz, 220V/60Hz
- Machine power: 9.8kW
- Max. cutting speed: 90m-150m/min
- Max. acceleration: 0.8G-1.5G
- X/Y-axis positioning accuracy: ±0.03mm/m
- X/Y-axis repositioning accuracy: ±0.03mm
- Operating Temperature: 0℃~40℃
- Operating humidity: <90% Non-condensing
- Axes motion: Precision rack and pinion
Detailed Parameters of Available Models
| Model | | | | |
| Working area (mm) | 3000*1500 | 4000*2000 | 6000*2000 | 12000*2500 |
| Z-axis travel (mm) | 150 | 150 | 150 | 150 |
| Ingress protection rating | IP54 | IP54 | IP54 | IP54 |
