Semi-Automatic Carton Stitcher

Semi-Automatic Carton Stitcher
Semi-Automatic Carton Stitcher
Request a Quote

Corrugated carton box stitching machine for one-piece boxes

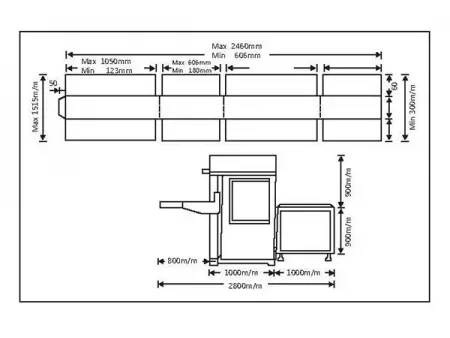

Specifications
  • Max. (Length Width)×2: 2460mm
  • Min. (Length Width)×2: 606mm
  • Max. (Width Height)×2: 1515mm
  • Min. (Width Height)×2: 400mm
  • Hight of feeder: 900mm
  • Power: 6HP
  • Stitching pitch: 30-60mm
  • Number of stitches: 1-99
  • Machine speed: 500 stitches/min
  • Machine length: 2800mm
  • Machine width: 2600mm
  • Machine weight: 2000kg
Features
  • Fitted with a dual servo drive system from Yaskawa, Japan, ensuring high accuracy and reducing mechanical faults
  • A user-friendly Weinview touchscreen allows for simple adjustments of parameters like stitch distance, stitch count, and stitch type
  • The entire control system is managed by an Omron PLC, ensuring smooth and efficient operations
  • The servo motor-driven rear stopper allows for precise adjustments directly from the touchscreen, enhancing ease of use
  • The lower mold and blades are made from high-quality tungsten steel, ensuring durability and long-term use
  • Made from special steel and precision-engineered, the stitching head can handle various stitching requirements
  • Thanks to its innovative design, the stitcher can perform single, double, or reinforced stitching, catering to different box designs and customer needs
  • Adjusting the box size and stitches can be done in just a minute, saving time and boosting productivity
  • Suitable for stitching both lidless and lidded boxes, offering versatility in production
  • Equipped with an automatic counting system and a photoelectric sensor on the feeding platform, it ensures precise counting and efficient output management
  • Capable of automatically counting finished boxes and delivering them for easy bundling and packaging, improving workflow and reducing manual labor
