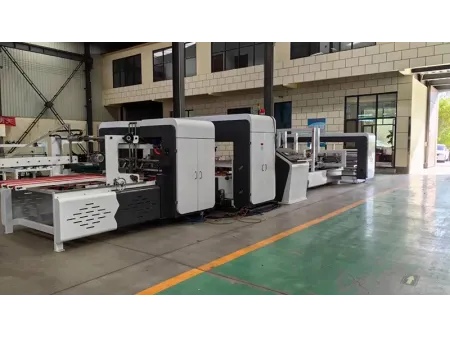

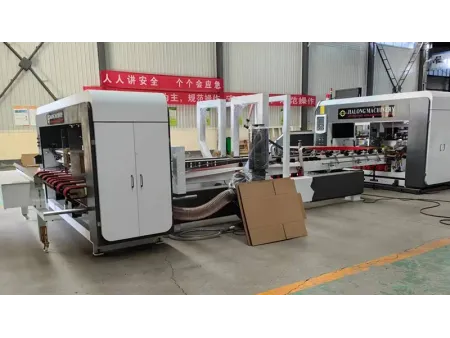

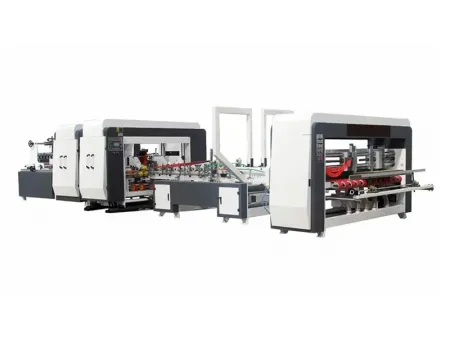

Cardboard box machine integrating gluing and stitching functions

Description

The automatic folder gluer stitcher simplifies the production of cardboard boxes by combining feeding, folding, gluing, stitching, and alignment correction into one efficient process. This carton converting machine is designed for high productivity, with stitching speeds averaging 80 meters per minute for 40-70 boxes and gluing speeds reaching 170 meters per minute for 100-300 boxes.

Specifications
Max. cardboard length (A B) ×2 2400mm
Min. cardboard length (A B) ×2 680mm
Min. cardboard width (C D C) 260mm
Max. box length A 750mm
Min. box length A 170mm
Max. box width B 450mm
Min. box width B 150mm
Max. box height D 700mm
Min. box height D 150mm
Max. flap size C 400mm
Min. flap size C 100mm
Max. stitch flap width E 35mm
Max. feeding height 1200mm
Stitching speed 800 stitches/min
Number of stitches 1-99
Machine dimensions (L×W×H) 1400×3500×1700mm
Machine weight 6T
Configurations
  • Feeding Unit
    Uses a vacuum suction belt lead edge feeder for accurate and reliable paper feeding
    Equipped with high-end electromagnetic clutch and brake systems, allowing independent control of the feeding section for ease of operation
    Features adjustable front baffle and belt for versatile paper handling
    The main motor uses variable frequency speed control, ensuring quiet, stable, and convenient operation
  • Folding & Gluing Unit
    Uses stainless steel wheels for glue application, ensuring even distribution without failures and saving on glue usage
    The folding section employs wear-resistant special material belts for precise automatic folding of cardboard
    High-quality stainless steel glue rollers ensure even glue application and efficiency

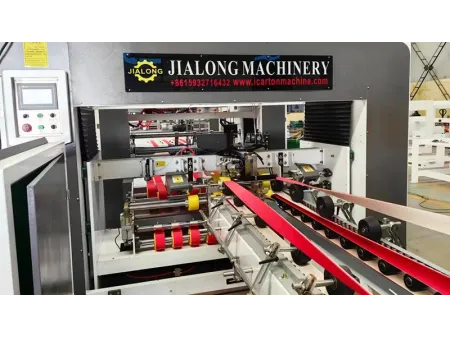

  • Stitching Unit
    Features a Taiwan Weinview touchscreen for easy parameter adjustments, including stitches distance, count, type, and backstop settings
    The stitching head is made from special mold steel, processed with precision CNC machining
    Supports single, double, and reinforced stitching options to meet various customer requirements
    Quick adjustments for box size and stitching distance can be made in just one minute, enhancing operational efficiency
  • Pasting Unit
    Automatic glue supply with a recycling system ensures continuous glue application without manual intervention, saving time and effort
    Stainless steel glue wheels are resistant to corrosion and wear, providing even glue application and significant glue savings compared to manual application
  • Counting & Stacking Unit
    Digital control for simple operation and reliable performance, allowing data input without stopping the folding gluing machine
    Uses belts for fast and tidy stacking of boxes, with an adjustable correction function for precise alignment
    Ensures accurate counting and organized stacking, improving workflow and reducing manual labor
