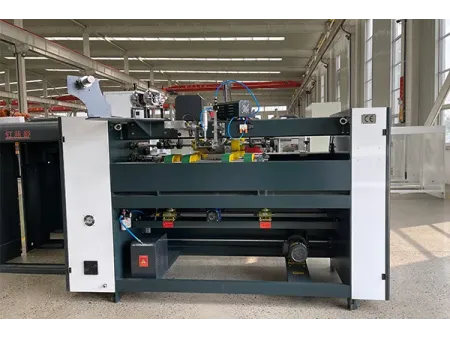

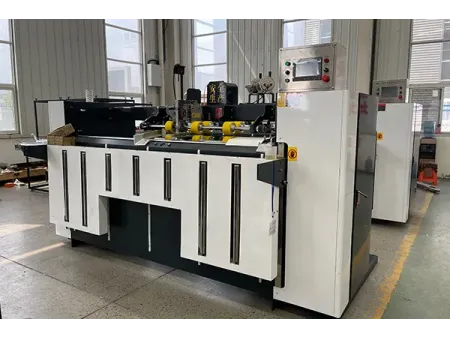

Semi-Automatic Stitcher Machine for One-Piece Box, CZYL-SSP1

Request a Quote

Website: http://corrugatedline-en.com/3-5-semi-automatic-stitcher-machine-one-piece-box.html

Carton Box Stitching Machines

The semi-automatic stitcher machine is designed for one-piece carton box production, offering fast changeovers, flexible stitching options, and user-friendly operation. Equipped with a dual-servo system and touchscreen controls, it delivers high-speed, precise stitching while reducing labor intensity.

Features

Quick Size Change
Complete size adjustments within just one minute

Easy Operation
Simple controls require no prior experience

Flexible Stitching
Supports single, double, and reinforced stitches for different carton requirements

Automatic Counting & Bundling
Feeder section counts cartons automatically and delivers them in bundles for convenient strapping

Touchscreen Control
Intuitive interface for easy parameter setting and monitoring

Dual Servo Drive
Ensures stable, precise operation with high reliability

Adjustable Nail Pitch
Stitching distance adjustable up to 100 mm

High-Speed Output
Achieves up to 450 stitches per minute

Customizable Settings
Stitching distance with or without box covers can be preset directly on the touchscreen

Specifications

Model	SDJ-1600D	SDJ-2000	SDJ-2500
Max. sheet size (A B)×2 (mm)	3200	4000	5000
Min. sheet size (A B)×2 (mm)	980	980	980
Max. carton length (A) (mm)	1480	1880	2380
Min. carton length (A) (mm)	370	370	370
Max. carton width (B) (mm)	800	1000	1250
Min. carton width (B) (mm)	120	120	120
Max. sheet size (C D C) (mm)	2900	2900	2900
Min. sheet size (C D C) (mm)	400	400	400
Max. flap size (C) (mm)	450 (standard) 600 (optional)	450 (standard) 600 (optional)	450 (standard) 600 (optional)
Min. flap size (C) (mm)	80 (standard) 20 (optional)	80 (standard) 20 (optional)	80 (standard) 20 (optional)
Max. carton height (D) (mm)	2000	2000	2000
Min. carton height (D) (mm)	200	200	200
Max. stitching tongue width (E) (mm)	40	40	40
Stitch pitch (mm)	30-150	30-150	30-150
Stitch count	2-99	2-99	2-99
Stitching speed (stitches/min)	600	600	600
Machine weight (ton)	3.0	3.2	3.5
