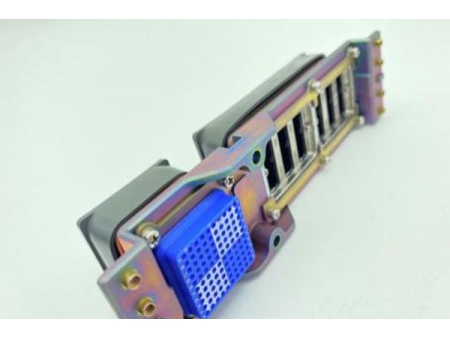

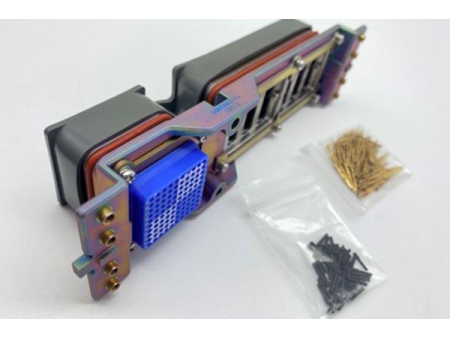

S6 (ARINC600) Series
General Information
- Compliant with ARINC600 standards
- Error correction mechanism with 99 keying positions for error prevention
- Multiple material and plating options available to meet various environmental requirements
- Enable mixing of low-frequency, power, high-frequency, high-speed differential, and optical contacts for integrated signal transmission
- Modular design allows users to customize connectors by selecting different modules
- Standard 8# RF contacts operate at frequencies from 0 to 500MHz, while floating 8# RF contacts operate at frequencies from 0 to 18GHz
Main Technical Information
- Mechanical Lifespan: 500 mating cycles
- Shock Resistance: 11ms half sine wave, 50g acceleration
- Vibration Resistance:
- Functional Vibration: 15 to 2000Hz, power spectral density of 0.126g^2/Hz, 6-hour duration
- Endurance Vibration: 15 to 2000Hz, power spectral density of 0.201g^2/Hz, 7.5-hour duration
- Temperature Range: -65°C to 150°C
- Salt Spray Test:
- Class F: 48 hours
- Class W: 500 hours
- Class M: 500 hours (acidic atmosphere)
- Fluid Resistance: Resistant to various fuels, coolants, and oils
- Insulation Resistance: ≥5000MΩ (at 500V DC)
