1J50 Soft Magnetic Alloy
Mechanical Properties
Tensile Strength
490 (σb/MPa)
Yield Strength
245 (σp0.2/MPa)
Elongation
30 (σ5/%)
Product Forms and Standards

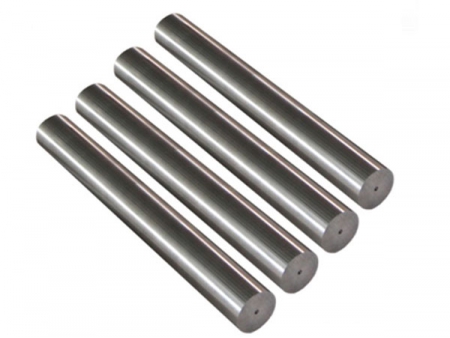

Bar
GB/T 32286.1-2015, ASTM A753 Alloy2
Forging
GB/T 32286.1-2015, ASTM A753 Alloy2

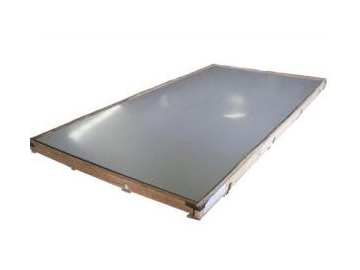

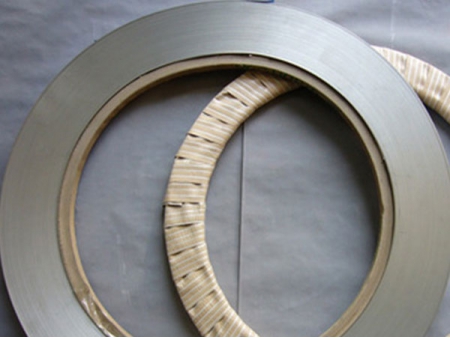

Sheet/Strip
GB/T 32286.1-2015, ASTM A753 Alloy2

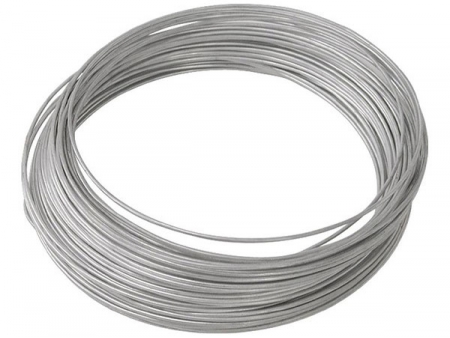

Wire
GB/T 32286.1-2015, ASTM A753 Alloy2
Pipe
GB/T 32286.1-2015, ASTM A753 Alloy2

1J50 alloy features high magnetic permeability, positioning it as a material of choice for manufacturing magnetic cores, inductors, sensors, and other magnetic components. This alloy has a remarkable saturation magnetic induction reaching up to 1.56T, highlighting its significance in the sector of magnetic materials.

Features Low coercivity: Its minimal coercivity means the 1J50 soft magnetic alloy can be magnetized and demagnetized effortlessly, adapting smoothly to varying magnetic requirements.
Good machinability: This alloy is not only easy to process and shape but also can be made into a variety of complex parts and components, providing versatility in design and application.
Good thermal performance: It features exceptional thermal stability, retaining its performance even at high temperature, ensuring dependability in challenging conditions.

Applications Electronics: The 1J50 alloy is widely used in the fabrication of sophisticated electronic components such as magnetic heads and disk drives, enhancing the functionality and reliability of electronic devices.
Communications: Used in the production of precise antennas and signal amplifiers, the alloy improves the efficiency and clarity of communication systems.
Aerospace and defense: Its reliability and precision make it suitable for critical aerospace and defense applications, including sensors and permanent magnets, ensuring performance under demanding conditions.

As technology advances and new high-tech innovations emerge, the application of 1J50 alloy in various fields is expected to expand further.

Chemical compositions
Grade1J50 C ≤0.03 S≤0.02
Mn0.3/0.6 Si0.15/0.3 Ni49.0/50.5
