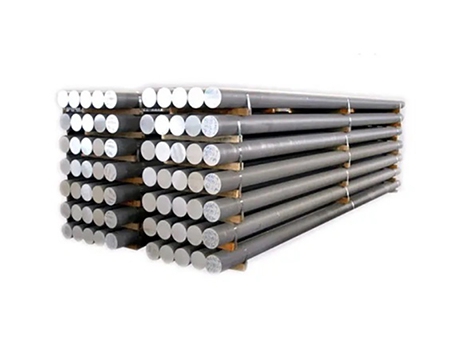

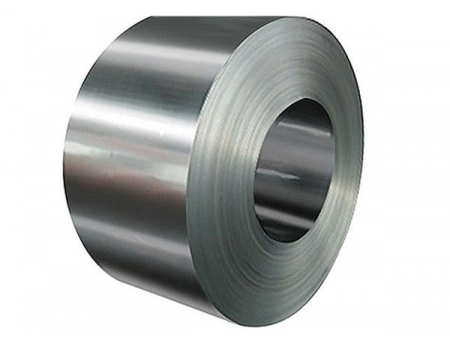

MAGNETIC ALLOY 1J22 Soft magnetic alloy
Request a Quote
Features
1J22 is known as soft magnetic alloy with high saturation magnetization(2.4T) and high Curie temperature (980℃), because of the features above, when us it to produce motors, it will decrease the volume of motor with no power lose. Thanks to the high Curie temperature, it will stay good magnetic stability when working in high temperature environment, and the high the magnetostriction coefficient make it an ideal choice for magnetostrictive transducer.
Chemical Analysis
| % | Fe | Co | C | Mn | Si | V | Cu | Ni | P | S |
| Min. | Balance | 49 | - | - | - | 0.8 | - | - | - | - |
| Max. | Balance | 51 | 0.04 | 0.3 | 1.3 | 1.8 | 0.2 | 0.5 | 0. 02 | 0.02 |
Physical Properties
| Density | 8.20G/CM3 |
| Melting Range | 980℃ |
- Applications
- Electronic Relay
- Lightweight electrical components for aeronautical and space applications.
