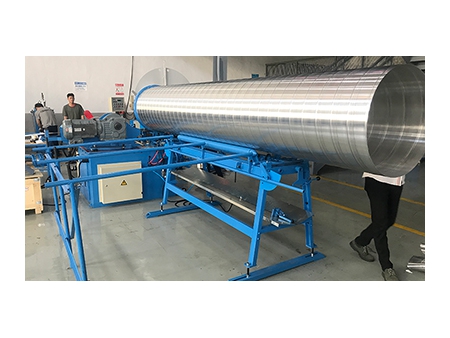

The 2020 spiral duct forming machine is designed to work with thicker materials to make ducts with a larger diameter and do so at higher production speeds with a higher precision.

The production diameter ranges between 80 to 2500mm, and as the spiral tube former is equipped with a plasma cutter, it is able to cut through material with a thickness of 2mm or higher. This equipment can also be programmed to cut the exact length for precision trimming to increase the production efficiency.

Features:
  • Changeable forming compartment for materials with different thickness.

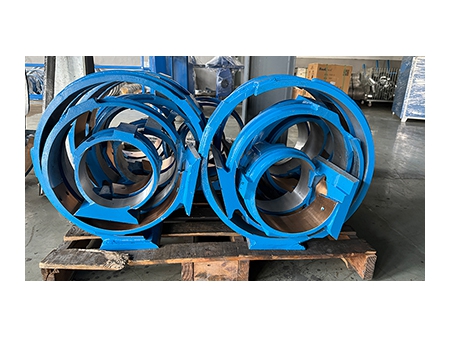

  • Aluminum forming heads are lighter and more precise compared to iron ones.
  • Duct corrugated to strengthen duct.
  • Maximum feeding speeds up to 68m/min.
Parameter:
Diameter Range Φ80-Φ2500mm
Thickness Of Strip Galvanized Steel Sheet 0.4-2.0mm;Stainless Steel 0.4-1.2mm;Aluminium 0.4-2.0mm
Width Of Strip 137mm 0.4-1.0mm
140mm 1.1-1.3mm
150mm 1.4-2.0mm
Motor Power 22kw
Weight 3200kg
dimension 2100mm×1800mm×1500mm(Main machine)
2000mm×1100mm×1300mm(Decoiler)
2450mm×1200mm×1200mm(run-out table)
Cutting plasma cut and flying slitter
