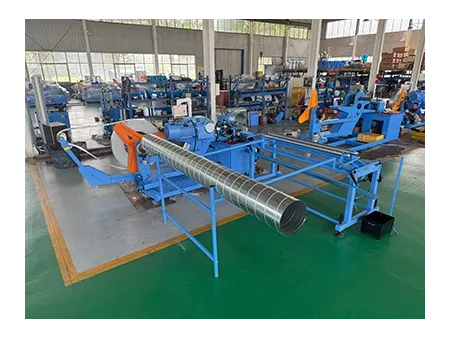

The 1500/1500C spiral duct forming machine is used to turn galvanized sheets, stainless steel, and aluminum into a spiral pattern, and further forming it into round ducts. These two models are exceptionally economical and designed to meet basic duct production needs, making them ideal for startup manufacturing plants.

The production diameter for both tube formers range between 80 to 1500mm, while the SBTF-1500C works on material with a thickness larger than 2mm.

Advantages:
  • Both machines are equipped with optic-electro sensor switch and offer an automatic cutting and stop mode.
  • Saw blades for cutting. The SBTF-1500C is equipped with saw blades for cutting and plasma cutting, with a diameter range of 80 to 1500mm.
  • 38m/min variable production speed. Maximum feeding speed is up to 38m/min
Parameter:

SBTF-1500 SBTF-1500C
Diameter Φ80-Φ1500mm Φ100-Φ1500mm
Thickness Of Strip Galvanized Steel Sheet 0.4-1.2mm;Stainless Steel 0.4-0.8mm Galvanized Steel Sheet 0.4-2.0mm;Stainless Steel 0.4-1.2mm
Width Of Strip 137mm 137mm
Stip Speed 1-38m/Min 1-30m/Min
Motor Power 5.5Kw 16.5 Kw
Weight 1708Kg 2300Kg
Dimension 3400mm×2070mm×2720mm 3800mm×2160mm×2720mm
Cutting system Saw cutter(plasma cutter according to customer’s request) Saw cutter and plasma cutter
