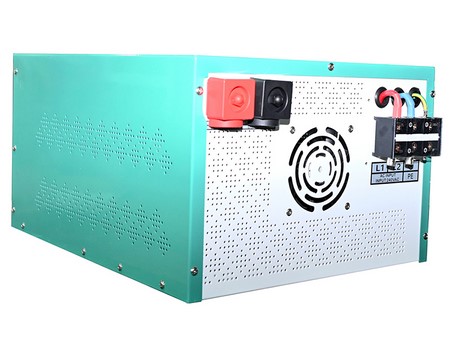

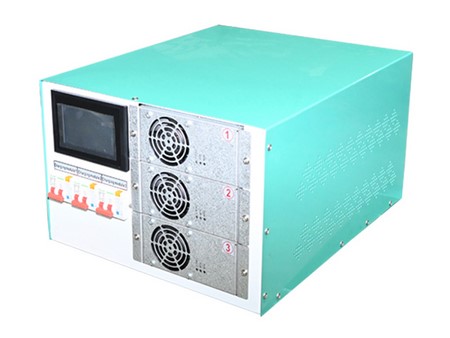

SD75060S 21kW AC/DC Single-Phase Battery Charger
Request a Quote
AC to DC battery charger
SD75060S 21kW AC/DC single-phase battery charger features three-phase neutral-free AC input, compatible with three-phase AC input, and is a power device that converts AC power to DC power. The charger utilizes a DC charging module with patented circuit design and innovative technology, making it easy to integrate into portable chargers.
Applications
21kW AC/DC single-phase battery charger is commonly used for charging batteries or DC power systems to meet the fast charging needs of personal vehicles and small logistics vehicles. The charger is suitable for operational use in locations such as parking lots, meeting users' needs for fast charging.
Functions
- Output voltage range of 100-750V meets the fast charging needs of various battery systems.
- Wide temperature range: -40°C to 75°C, with derating output above 55°C, suitable for charging pile applications in various scenarios.
Features
- DSP design enables full digital control of the charging module.
- Ultra-wide input voltage range: 90VAC~280VAC.
- Low standby power consumption is less than 8W.
Specifications
| Model | SD75060S | |
| Working Environment | Working temperature | -40℃~ 75℃ (derating for above 55℃) |
| Storage temperature | -40℃~ 80℃ | |
| Relative humidity | ≤95%RH, non-condensing | |
| Cooling method | Fan-cooled | |
| Altitude | 2000m (derating for above 2000m) | |
| AC Input | Input voltage | 220VAC(L N PE) |
| Max. input current | ＜96A | |
| Frequency | 45Hz~65Hz | |
| Power factor | ≥0.99 | |
| Efficiency (full load) | ＞95% | |
| THD | ＜5% | |
| DC Output | Output power | 21kW |
| Voltage | 50VDC-750VDC, adjustable with 0.1VDC step | |
| Rated output voltage | 350VDC-750VDC | |
| Output current | 0-60A (can be set) | |
| Ripple | ＜±5% | |
| Voltage stabilization accuracy | ＜±5% | |
| Current stabilization accuracy | ≤±1% (output load 20%~100% of rated range) | |
| Alarm & Protection | Input overvoltage/ under voltage protection | Automatic power off protection, and automatic recovery after input voltage being stabilized |
| Output overvoltage protection | Automatic power off and lock, re-power on for recovery | |
| Overcurrent / short circuit protection | Automatic power off and lock, re-power on for recovery | |
| Overheating protection | Automatic power off protection, and automatic recovery after temperature being stabilized | |
| Dimensions & Weight | Dimensions (W×D×H) | 475×740×297mm |
| Weight | 36kg | |
