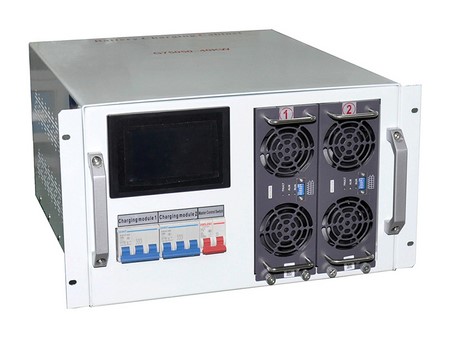

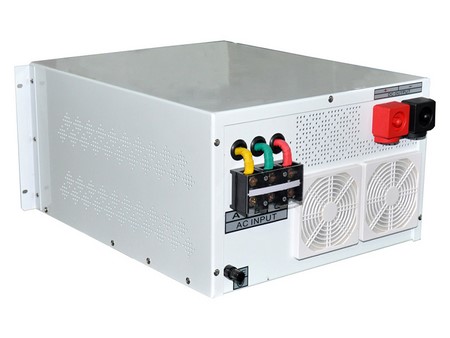

SD750100G 40kW/100A AC/DC Three-Phase Battery Charger
Request a Quote
AC to DC battery charger
40KW/100A AC/DC three-phase battery charger utilizes three-phase neutral-free AC input, compatible with three-phase AC input, and incorporates patented circuit design and innovative technology. This charger module is easy to integrate into portable chargers.
Applications
40KW/100A AC/DC three-phase battery charger is commonly used for charging batteries or DC power systems, mainly for testing, charging, and discharging electric vehicles and other DC power devices. This type of charger also finds wide application in scientific research, industrial production, and high-tech fields.
Functions
- 100VDC-750VDC output voltage range meets the fast charging needs of various energy storage battery packs.
- 400DC-750VDC constant power output, ensuring stable, reliable, and safe charging with strong charging capability and fast speed.
Features
- AC/DC three-phase battery charger comes with a full load efficiency of 95%, and standby power consumption of less than 9W.
- Dual DSP design enables full digital control of the charging module.
- Battery anti-backflow technology effectively protects the battery.
Specifications
| Model | SD750100G | |
| Working Environment | Working temperature | -40℃~ 75℃ (derating for above 55℃) |
| Storage temperature | -40℃~ 80℃ | |
| Relative humidity | ≤95%RH, non-condensing | |
| Cooling method | Fan-cooled | |
| Altitude | 2000m (derating for above 2000m) | |
| AC Input | Input voltage | 380VAC(3PH PE) |
| Max. input current | ＜74A | |
| Frequency | 45Hz~65Hz | |
| Power factor | ≥0.99 | |
| Efficiency (full load) | ＞95% | |
| THD | ＜5% | |
| DC Output | Output power | 40kW@400VDC |
| Voltage | 100VDC-750VDC, adjustable with 0.1VDC step | |
| Rated output voltage | 400VDC-750VDC | |
| Output current | 1-100A (can be set) | |
| Current limiting | 0.2-100A (adjustable) | |
| Ripple | ＜±5% | |
| Voltage stabilization accuracy | ＜±0.5% | |
| Current stabilization accuracy | ≤±1% (output load 20%~100% of rated range) | |
| Monitoring | Communication | CAN bus (optional) |
| Indicator light | Green: battery charging Yellow: protective alarming Red: battery fault alarming | |
| Alarm & Protection | Input overvoltage/ under voltage protection | Automatic power off protection, and automatic recovery after input voltage being stabilized |
| Output overvoltage protection | Automatic power off and lock, re-power on for recovery | |
| Overcurrent / short circuit protection | Automatic power off and lock, re-power on for recovery | |
| Overheating protection | Automatic power off protection, and automatic recovery after temperature being stabilized | |
