Small AC Gear Motor, Single Phase

Small AC Gear Motor, Single Phase
Small AC Gear Motor, Single Phase
Small AC Gear Motor, Single Phase
Small AC Gear Motor, Single Phase
Small AC Gear Motor, Single Phase
Small AC Gear Motor, Single Phase
Small AC Gear Motor, Single Phase
Small AC Gear Motor, Single Phase
Small AC Gear Motor, Single Phase
Small AC Gear Motor, Single Phase
Small AC Gear Motor, Single Phase
Small AC Gear Motor, Single Phase
Small AC Gear Motor, Single Phase
Small AC Gear Motor, Single Phase
Small AC Gear Motor, Single Phase
Small AC Gear Motor, Single Phase
Small AC Gear Motor, Single Phase
Small AC Gear Motor, Single Phase
Small AC Gear Motor, Single Phase
Small AC Gear Motor, Single Phase
Request a Quote
View All: http://zd-drivers.com/5-1-single-phase-series.html

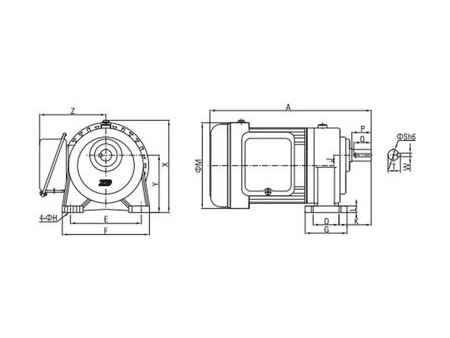

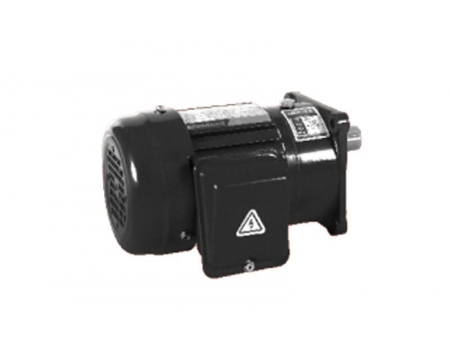

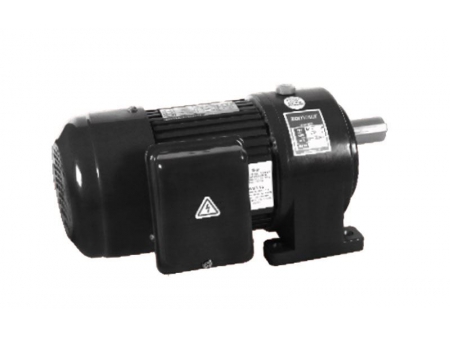

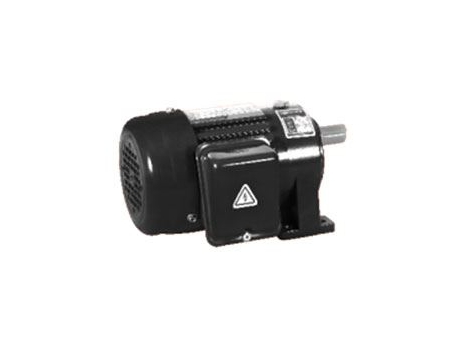

Horizontal

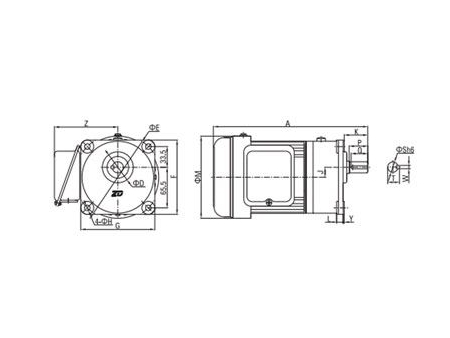

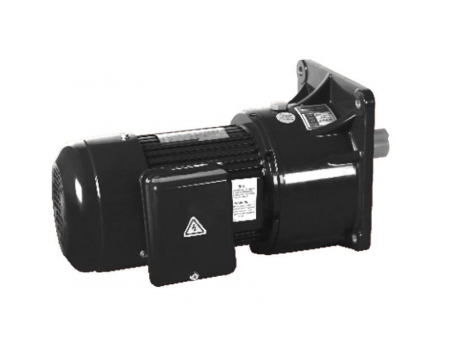

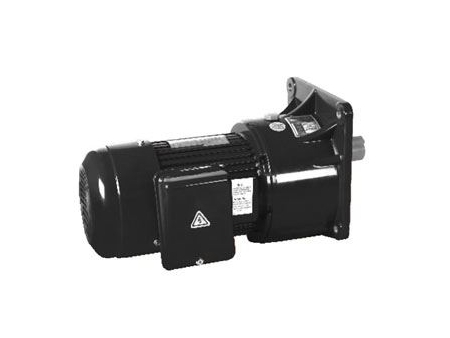

Vertical

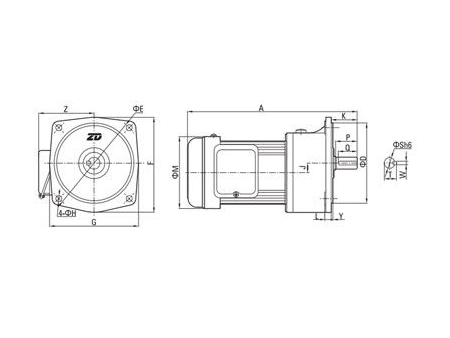

Specifications
Unit: mm
Power Gear Ratio A D E F G H J K L M X Y Z S P Q W T Weight
100W 1/8HP 3-50 (Standard Type) 250 40(50) 110(140) 135(120) 65(120) 9 16 50(40) 10.5(12) 133 138(/) 88.5(2) 105 18 30 27 5 20.2 5.7
60-200 (Light Duty Type) 250 40(50) 110(140) 135(120) 65(120) 9 16 50(40) 10.5(12) 133 138(/) 88.5(2) 105 18 30 27 5 20.2 5.7
200W 1/4HP 3-10 (Standard Type) 285 40(50) 110(140) 135(120) 65(120 9 16 50(40) 10.5(12) 133 138(/) 88.5(2) 105 18 30 27 5 20.2 7.0
15-90 (Light Duty Type) 285 40(50) 110(140) 135(120) 65(120) 9 16 50(40) 10.5(12 133 138(/) 88.5(2) 105 18 30 27 5 20.2 7.0

※Tabulation "()" denote vertical box dimension

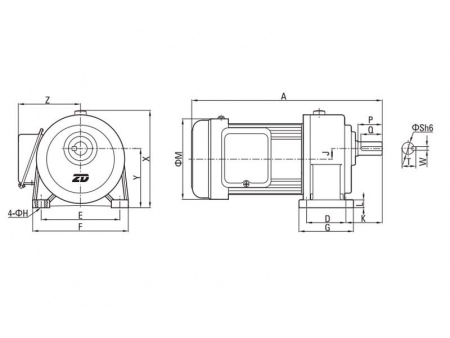

Horizontal

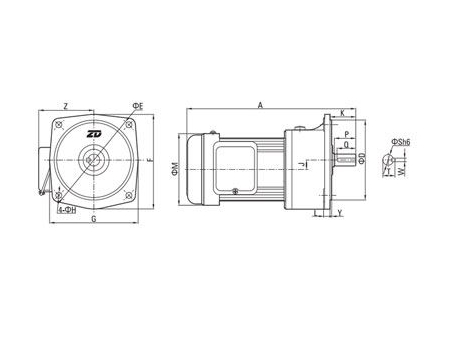

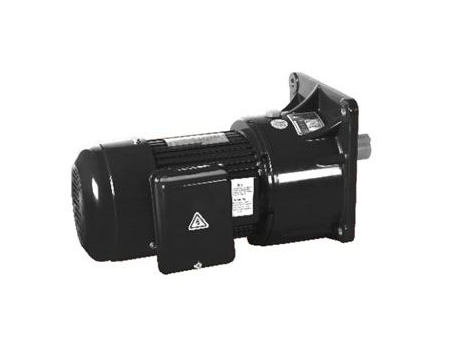

Vertical
Specifications
Unit: mm
Power Gear Ratio A D E F G H J K L M X Y Z S P Q W T Weight
100W 1/8HP 60-200 (Standard Type) 280 65(148) 130(185) 158(175) 90(165) 12 7.5 60(48) 13(12) 133 152(/) 97.5(3) 105 22 40 35 7 25 7.30
250-180 (1# 2#) (Light Duty Type) 345 65(148) 130(185) 158(175) 90(165) 12 33.5 60(48) 13(12) 133 152(/) 97.5(3) 105 22 40 35 7 25 12.0
200W 1/4HP 15-90 (Standard Type) 315 65(148) 130(185) 158(175) 90(165) 12 17.5 60(48) 13(12) 133 152(/) 97.5(3) 105 22 40 35 7 25 9.00
100-200 (Light Duty Type) 315 65(148) 130(185) 158(175) 90(165) 12 7.5 60(48) 13(12) 133 152(/) 97.5(3) 105 22 40 35 7 25 9.00
400W 1/2HP 3-10 (Standard Type) 360 65(148) 130(185) 158(175) 90(165) 12 17.5 60(48) 13(12) 167 152(/) 97.5(3) 135 22 40 35 7 25 11.5
15-90 (Light Duty Type) 360 65(148) 130(185) 158(175) 90(165 12 17.5 60(48) 13(12 167 152(/) 97.5(3) 135 22 40 35 7 25 11.5
750W HP / / / / / / / / / / / / / / / / / / / /
3-25 (Light Duty Type) 380 65(148) 130(185) 158(175) 90(165) 12 7.5 60(48) 13(12) 167 152(/) 97.5(3) 135 22 40 35 7 25 13.5

※Tabulation "()" denote vertical box dimension

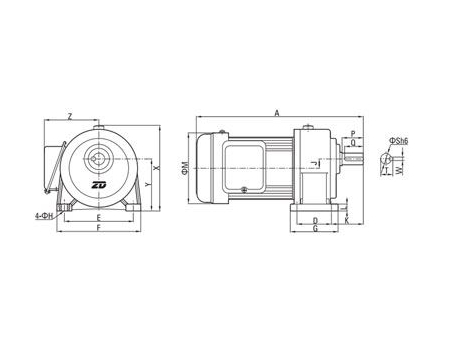

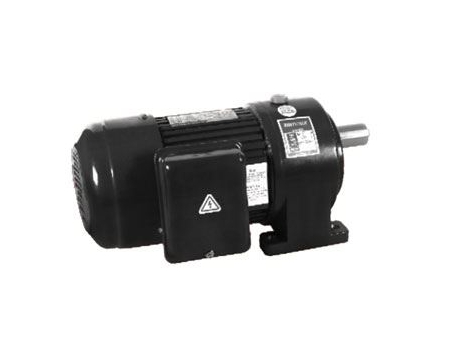

Horizontal

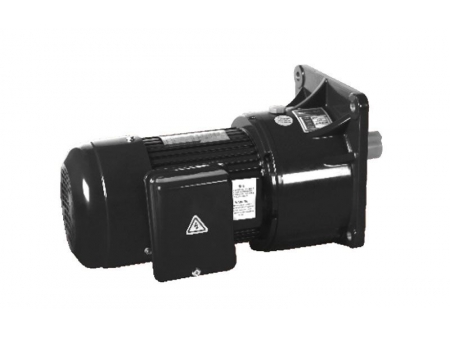

Vertical
Specifications
Unit: mm
Power Gear Ratio A D E F G H J K L M X Y Z S P Q W T Weight
00W 1/8HP 250-1800 (1# 3#) (Standard Type) 375 90(170) 140(220) 178(205) 120(195) 12 39 68(58) 17(13) 133 178(/) 116(3) 120 28 45 40 7 31.1 14.5
/ / / / / / / / / / / / / / / / / / / /
200W 1/4HP 100-200 (Standard Type) 350 90(170) 140(220) 178(205) 120(195) 12 23 68(58) 17(13) 133 178(/) 116(3) 105 28 45 40 7 31.1 9.00
250-1800 (1# 3#) (Light Duty Type) 410 90(170) 140(220) 178(205) 120(195) 12 39 68(58) 17(13) 167 178(/) 116(3) 105 28 45 40 7 31.1 18.0
400W /2HP 15-90 (Standard Type) 390 90(170) 140(220) 178(205) 120(195) 12 23 68(58) 17(13) 167 178(/) 116(3) 135 28 45 40 7 31.1 14.0
100-200 (Light Duty Type) 390 90(170) 140(220) 178(205) 120(195) 12 23 68(58) 17(13) 167 178(/) 116(3) 135 28 45 40 7 31.1 14.0
750W HP 3-25 (Standard Type) 410 90(170) 140(220) 178(205) 120(195) 12 23 68(58) 17(13) 167 178(/) 116(3) 135 28 45 40 7 31.1 16.0
30-120 (Light Duty Type) 410 90(170) 140(220) 178(205) 120(195) 12 23 68(58) 17(13) 167 178(/) 116(3) 135 28 45 40 7 31.1 16.0
1500W 2HP / / / / / / / / / / / / / / / / / / / /
3-30 (Light Duty Type) 418 90(170) 140(220) 178(205) 120(195) 12 23 68(58) 17(13) 192 193(/) 116(3) 139 28 45 40 7 31.1 25.0

※Tabulation "()" denote vertical box dimension

Horizontal
Vertical
Specifications
Unit: mm
Power Gear Ratio A D E F G H J K L M X Y Z S P Q W T Weight
200W 1/4HP 250-1800 (2# 4#) (Standard Type) 470 30(185) 170(255) 210(239) 165(216) 13 47.5 70(66.5 18(13) 133 216(/) 38.5(3) 120 32 55 50 10 35.5 28.0
Light Duty Type / / / / / / / / / / / / / / / / / / /
400W 1/2HP 100-200 (Standard Type) 430 30(185) 170(255) 210(239) 165(216) 13 30.0 70(66.5) 18(13) 167 216(/) 38.5(3) 135 32 55 50 10 35.5 27.0
250-1800 (2# 4#) (Light Duty Type) 510 30(185) 170(255) 210(239) 165(216) 13 47.5 70(66.5) 18(13) 167 216(/) 38.5(3) 135 32 55 50 10 35.5 30.0
750W HP 30-120 (Standard Type) 450 30(185) 170(255) 210(239) 165(216) 13 30.0 70(66.5) 18(13) 167 216(/) 38.5(3) 135 32 55 50 10 35.5 28.0
125-200 (Light Duty Type) 450 30(185) 170(255) 210(239) 165(216) 13 30.0 70(66.5) 18(13) 167 216(/) 38.5(3) 135 32 55 50 10 35.5 28.0
1500W 2HP 3-30 (Standard Type) 452 30(185) 170(255) 210(239) 165(216) 13 30.0 70(66.5) 18(13) 192 216(/) 38.5(3) 139 32 55 50 10 35.5 36.0
40-100 (Light Duty Type) 452 30(185) 170(255) 210(239) 165(216) 13 30.0 70(66.5) 18(13) 192 216(/) 38.5(3) 139 32 55 50 10 35.5 36.0

※Tabulation "()" denote vertical box dimension

Horizontal
Vertical
Specifications
Unit: mm
Power  Gear Ratio A D E F G H J K L M X Y Z S P Q W T Weight
400W 1/2HP 250-1800 (3# 5#) (Standard Type) 580 50(230) 210(310) 265(277) 203(255) 15 59 83 20(18) 167 255(/) 160(5) 135 40 65 60 10 43.5 46.0
Light Duty Type / / / / / / / / / / / / / / / / / / /
750W HP 125-200 (Standard Type) 500 50(230) 210(310) 265(277) 203(255) 15 36 83 20(18) 167 255(/) 160(5) 135 40 65 60 10 43.5 42.5
250-1800 (3# 5#) (Light Duty Type) 600 50(230) 210(310) 265(277) 203(255) 15 59 83 20(18) 167 255(/) 160(5) 200 40 65 60 10 43.5 50.0
1500W 2HP 40-100 (Standard Type) 503 50(230) 210(310) 265(277) 203(255) 15 36 83 20(18) 192 255(/) 160(5) 139 40 65 60 10 43.5 52.0
110-150 (Light Duty Type) 503 50(230) 210(310) 265(277) 203(255) 15 36 83 20(18) 192 255(/) 160(5) 139 40 65 60 10 43.5 52.0

※Tabulation "()" denote vertical box dimension

Horizontal
Vertical
Specifications
Unit: mm
Power Gear Ratio A D E F G H J K L M X Y Z S P Q W T Weight
1500W 2HP 110-180 (Standard Type) 560 70(280) 265(390) 335(367) 230(342) 18 51 97(92) 25 192 312(/) 200(5) 146 50 80 75 14 54 94.0

※Tabulation "()" denote vertical box dimension
