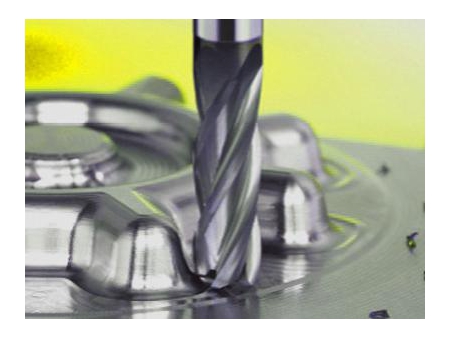

2 Flute 60°Helix Carbide End Mill
Request a Quote
Application
The 60°carbide 2 flute end mill mainly used in milling machines for flat surfaces, side surfaces, groove shaping, and workpiece cutting.
Function
milling and cutting
Material
carbide (hard metal)
Parameters
| Length | Cutter Diameter mm (D) | Shank Diameter mm (D1) | Flute Length mm (L1) | Overall Length mm (L) |
| Standard | R0.5 | 4 | 2 | 50 |
| R0.75 | 4 | 3 | 50 | |
| R1 | 4 | 4 | 50 | |
| R1.25 | 4 | 5 | 50 | |
| R1.5 | 4 | 6 | 50 | |
| R1.75 | 4 | 7 | 50 | |
| R2 | 4 | 8 | 50 | |
| R0.5 | 6 | 2 | 50 | |
| R0.75 | 6 | 3 | 50 | |
| R1 | 6 | 4 | 50 | |
| R1.5 | 6 | 6 | 50 | |
| R2 | 6 | 8 | 50 | |
| R2.5 | 6 | 10 | 50 | |
| R3 | 6 | 12 | 50 | |
| R4 | 8 | 16 | 60 | |
| R5 | 10 | 20 | 75 | |
| R6 | 12 | 24 | 75 | |
| R8 | 16 | 30 | 100 | |
| R10 | 20 | 30 | 100 | |
| Stretched | R0.5 | 4 | 2 | 75 |
| R0.75 | 4 | 3 | 75 | |
| R1 | 4 | 4 | 75 | |
| R1.5 | 4 | 6 | 75 | |
| R2 | 4 | 8 | 75 | |
| R0.5 | 6 | 2 | 75 | |
| R0.75 | 6 | 3 | 75 | |
| R1 | 6 | 4 | 75 | |
| R1.5 | 6 | 6 | 75 | |
| R2 | 6 | 8 | 75 | |
| R2.5 | 6 | 10 | 75 | |
| R3 | 6 | 12 | 75 | |
| R2 | 4 | 8 | 100 | |
| R3 | 6 | 12 | 100 | |
| R4 | 8 | 16 | 100 | |
| R5 | 10 | 20 | 100 | |
| R6 | 12 | 24 | 100 | |
| R8 | 16 | 30 | 150 | |
| R10 | 20 | 30 | 150 |
