2 Flute 45°Helix Carbide End Mill

2 Flute 45°Helix Carbide End Mill
2 Flute 45°Helix Carbide End Mill
Request a Quote
View All: http://metalworking-tool.com/3-1-emb01-hrc65-carbide-square-end-mills-2-flutes.html
Application

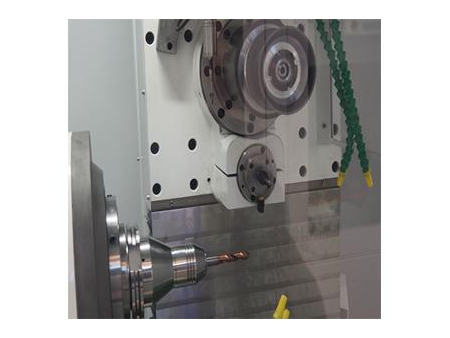

The 45°carbide 2 flute milling tool is mainly used in milling machines for flat surfaces, side surfaces, groove shaping, and workpiece cutting.

Material

carbide

Parameters
Shank Diameter mm (D1)
Tolerance(mm)
Less than 10 0-0.002
More than 10 0-0.0025
Stretched 4 4 20 75
6 6 25 75
7 8 25 75
8 8 30 75
4 4 25 100
6 6 30 100
8 8 35 100
10 10 40 100
12 12 45 100
8 8 40 150
10 10 50 150
12 12 50 150
16 16 70 150
18 18 80 150
20 20 80 150
Length Cutter Diameter mm (D) Shank Diameter mm (D1) Flute Length mm (L1) Overall Length mm (L)
Standard 1 4 3 50
1.5 4 4 50
2 4 5 50
2.5 4 6 50
3 4 8 50
3.5 4 10 50
4 4 11 50
1 6 3 50
1.5 6 4 50
2 6 5 50
2.5 6 6 50
3 6 8 50
3.5 6 10 50
4 6 11 50
5 6 13 50
6 6 15 50
7 8 17 60
8 8 20 60
10 10 25 75
12 12 30 75
14 14 35 100
16 16 40 100
18 18 40 100
20 20 40 100
